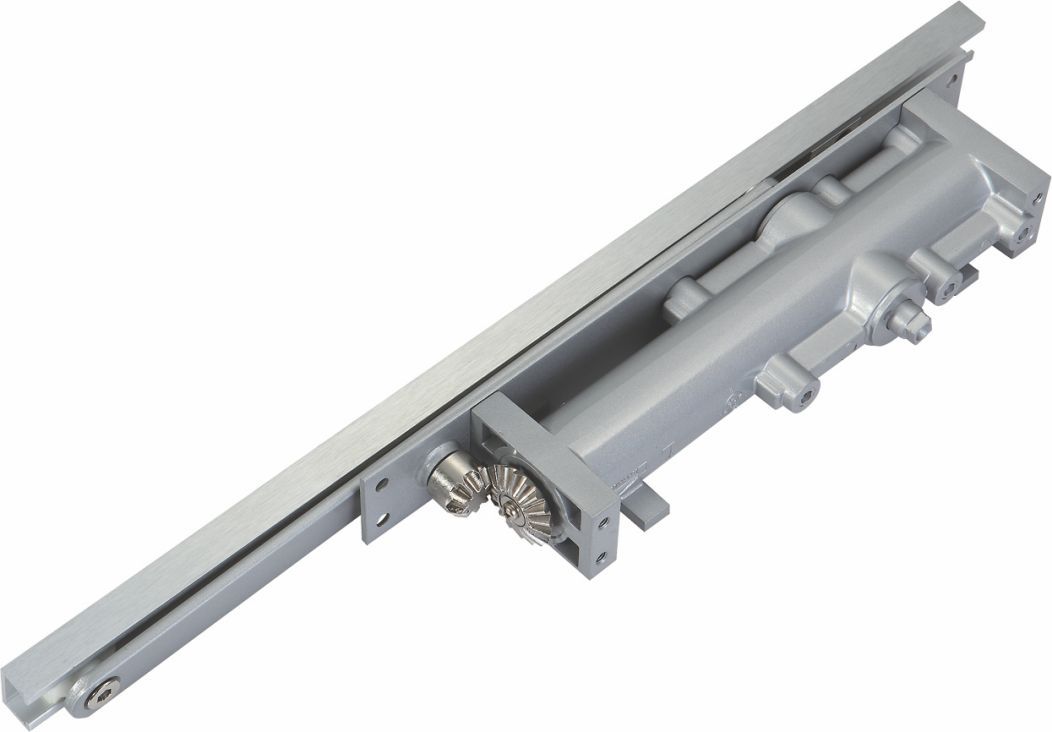

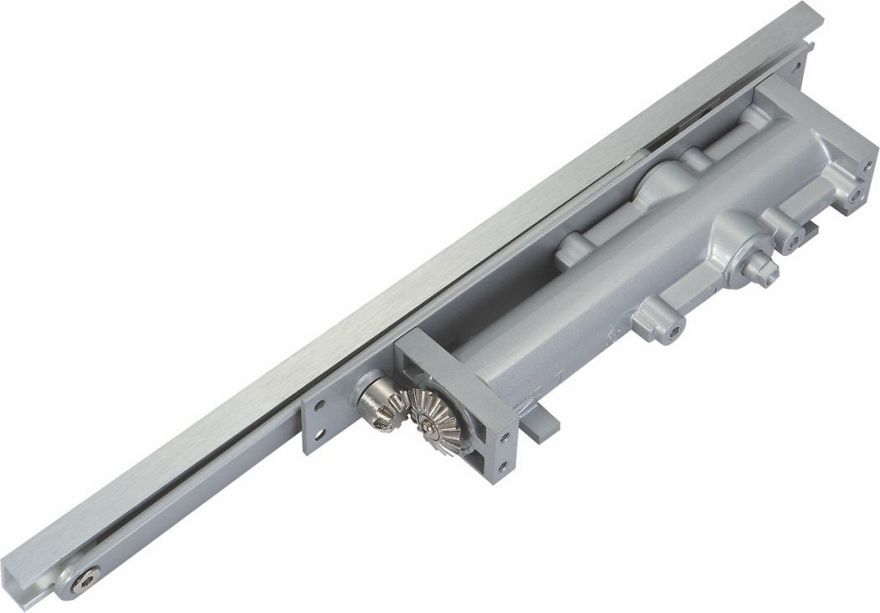

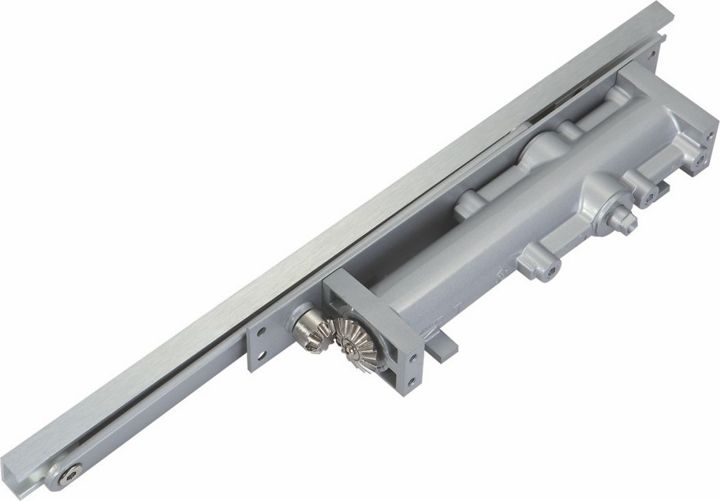

ITS - 3870

Concealed Door Closer with adjustable closing force EN 2 - 5

Features :

  • Hydraulic closing with two stage closing control.
  • Closing force 2 - 5 according to EN for door width up to 1250mm adjustable by force adjustment.
  • With Standard arm.
  • Same version DIN left and DIN right.
  • Mounting height only 61 mm.
  • Maximum Door Weight - 100 kgs.
  • Maximum Door Width - 1250 mm.
  • Maximum angle of door opening - 120°.
  • Tested - 500,000 Cycles.
  • Finish - Silver.

Door Closer Mechanism

Special Features   ITS 6900(Cam Action)
Closing Force Size According to EN   2-5
Door Width Size According to EN   ≤850
  ≤650
  ≤1100
  ≤1250
Door Weight Max (in Kgs)   100

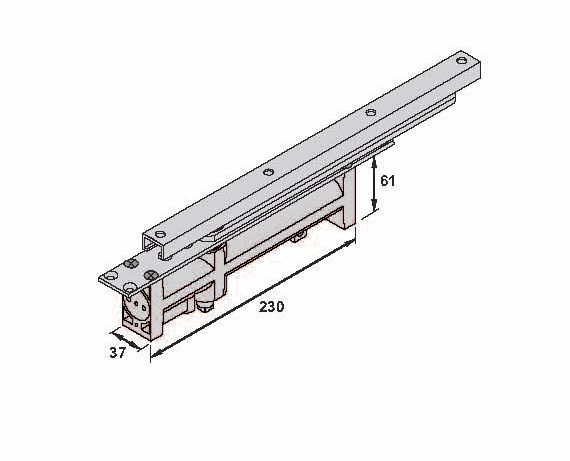

Dimensions including mounting plate MM       Length 230
MM       Depth 37
MM       Height 61
Arm Standard
Parallel Arm Bracket
Slide Arm
Slide Arm & Hold Open Arm
Hold Open Arm
Closing Speed (adjustable)
Latching Speed (adjustable)
Back Check (adjustable)
Delay Action
Tested According to EN
Certified According to EU Directive
