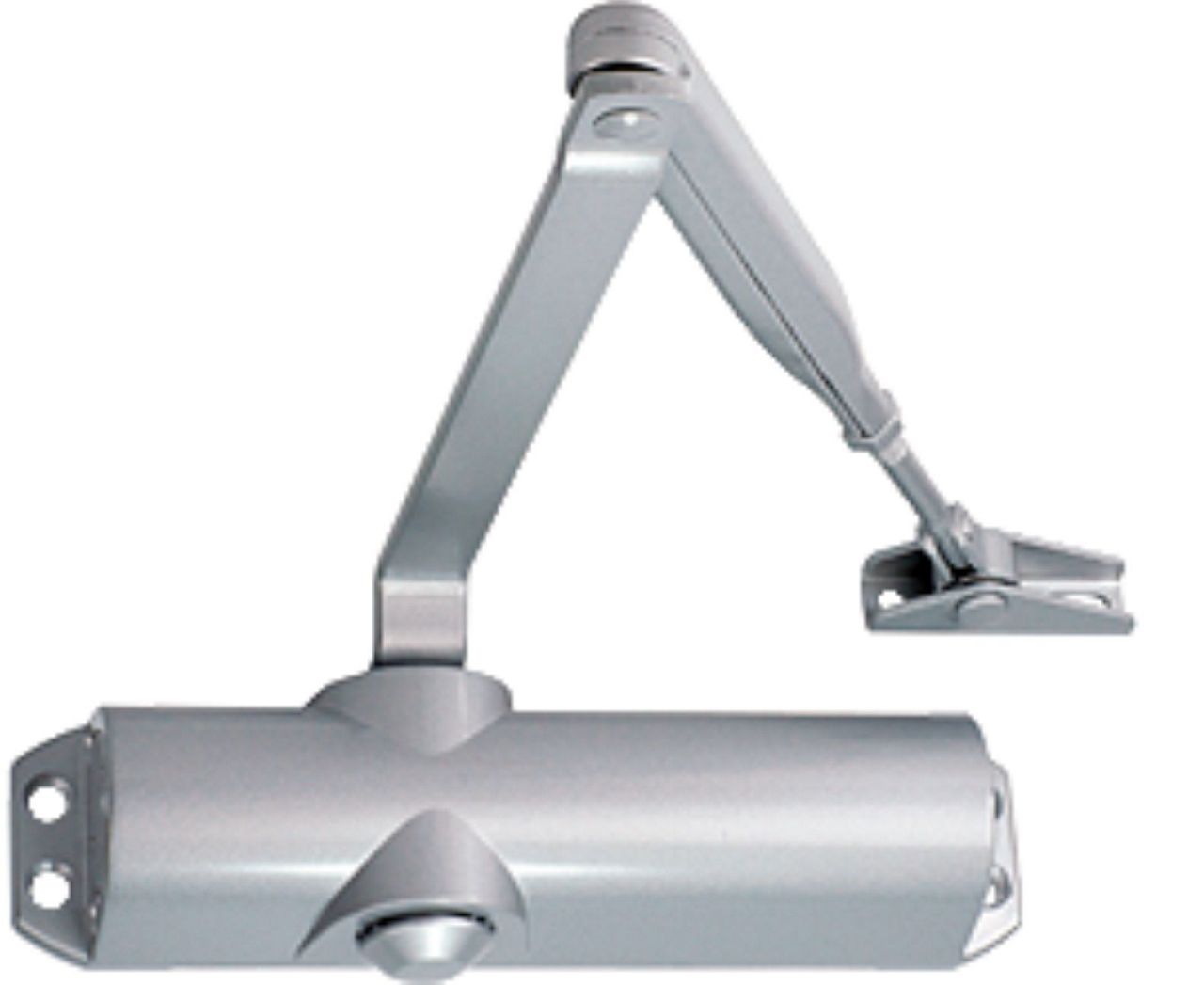

TS - 700

Door Closer with selectable closing force EN 2/3/4

Features :

• Hydraulic closing with two stage closing control.
• Closing force 2/3/4 according to EN for door width up to 1100 mm adjustable by moving the door closer.
• With standard arm.
• Same version DIN left and DIN right.

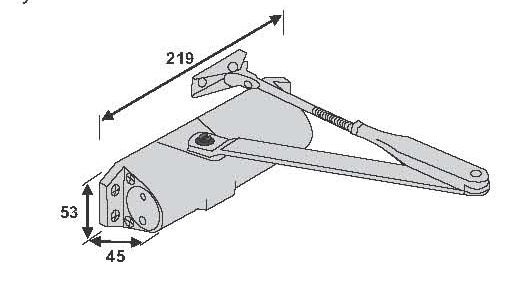

• Mounting height only 53 mm.
• Maximum Door Weight - 80 kgs.
• Maximum Door Width - 1100 mm.
• Maximum Angle of Opening - 180°.
• Tested - 500,000 Cycles.
• Finish - Silver.

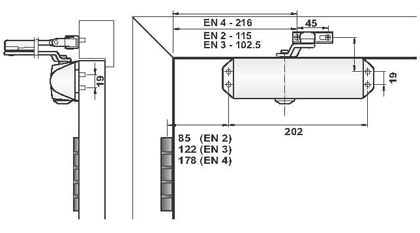

Dimension detail of Hinge Side

DIN left-door, DIN right laterally reversed

Standard mounting, hinge side

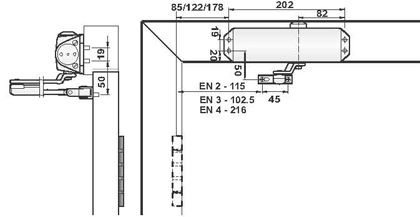

Dimension detail of Hinge-opposite Side

DIN left-door, DIN right laterally reversed

Head mounting, hinge-opposite side

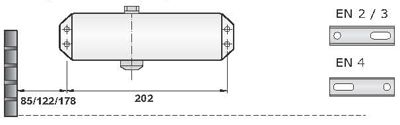

Closing Force EN 2 / 3 / 4
