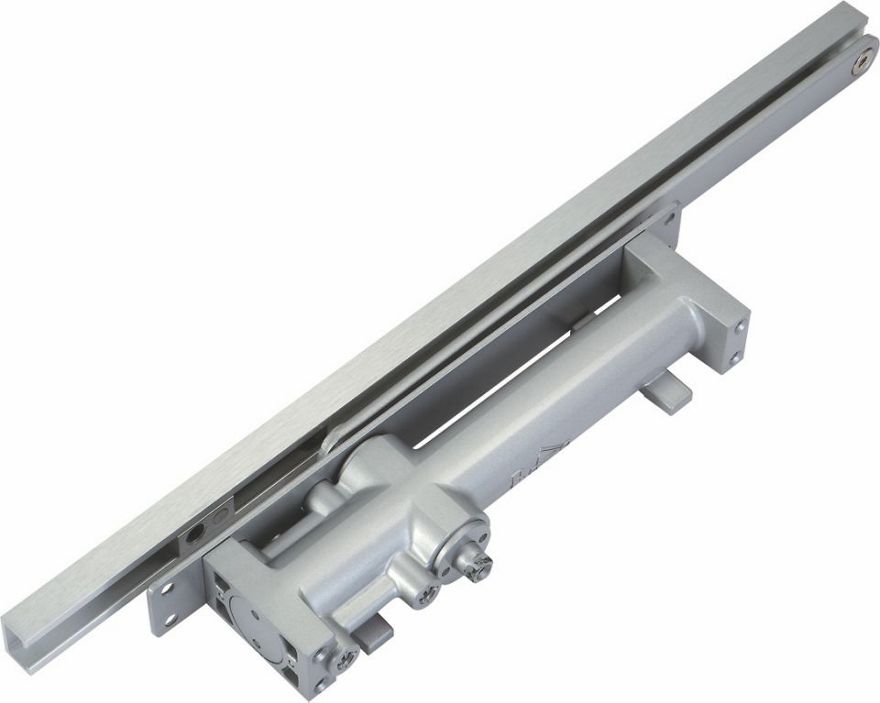

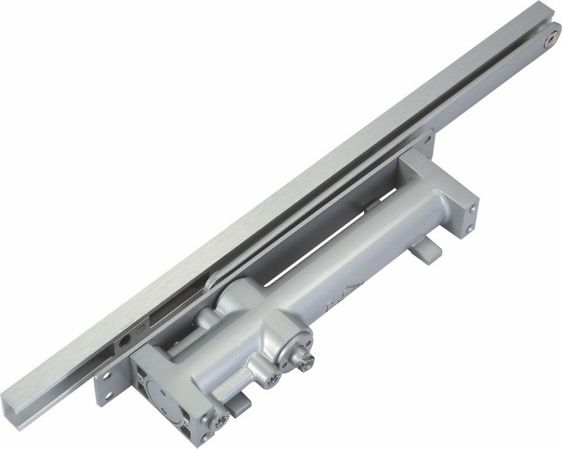

ITS 3800-90

Concealed Door Closer with Power Size 3

Features :

  • Applicable for Timber & Metal doors
  • Durability 500,000 cycles
  • Hydraulic closing with two stage closing control.
  • Closing force 3 according to EN (for door width up to 950mm)
  • With slide rail.

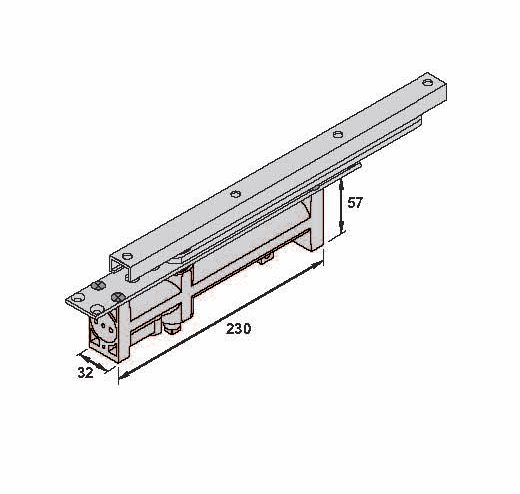

  • Mounting height only 57 mm.
  • Maximum door weight - 90 kgs.
  • Maximum door width - 950 mm.
  • Maximum angle of opening - 120°.
  • Minimum door thickness - 40 mm.
  • Finish - Silver / Black Matte
Special Features ITS 3800-90
Type  Rack and Pinion
Power Size 03-01-1900
Door Width 950mm
Suitable for door weight 90 kgs
Slide Arm •
Back Check(adjustable) •
Hold Open •
Closing Speed(adjustable) •
Latching Speed(adjustable) •
Delay action -
Durability 500,000 cycles
