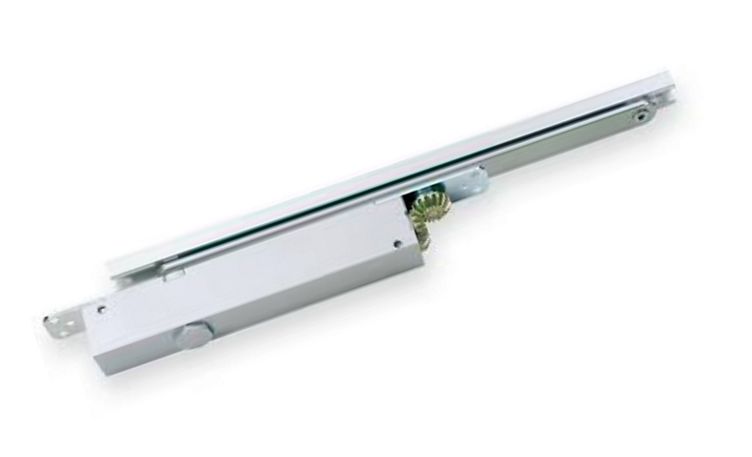

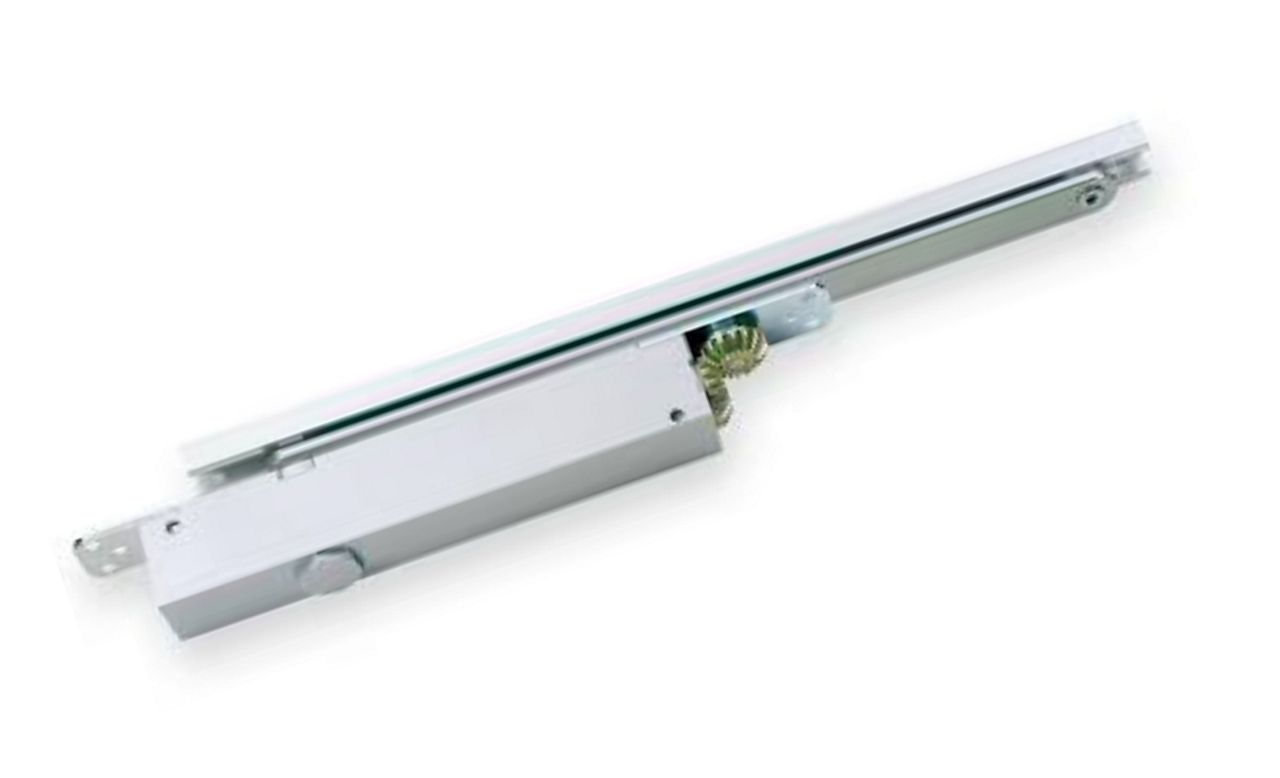

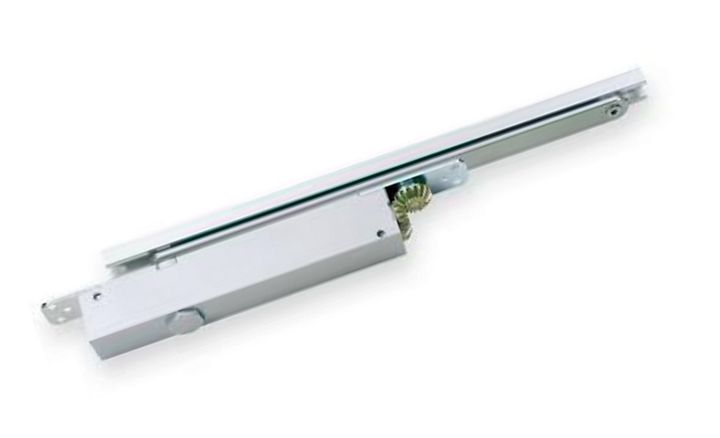

ITS - 990

Concealed Door Closer with adjustable closing force EN 3 - 6

Features :

• Hydraulic closing with two stage closing control.
• Adjustable closing force EN 3 - 6.
• With concealed slide rail.
• Same version DIN left and DIN right.
• Mounting height only 53 mm.
• Maximum Door Weight - 120 kgs.
• Maximum Door Width - 1400 mm.
• Maximum angle of door Opening - 120°.
• Tested - 500,000 Cycles.
• Finish - Silver.

Door Closer Mechanism

Special Features		ITS 990
Closing Force Size According to EN		3-6
Door Width Size According to EN		≤950
		≤1100
		≤1250
		≤1400
Door Weight Max (in Kgs)		120

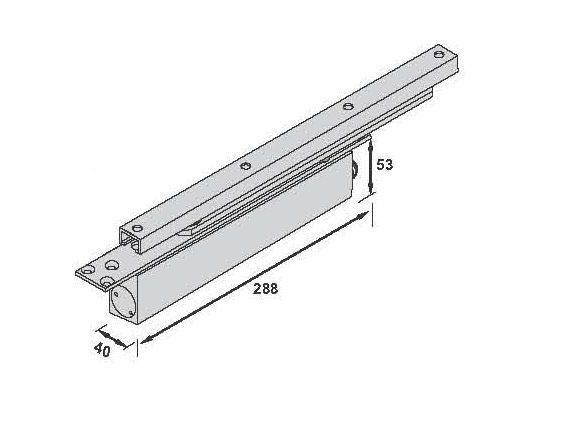

Dimensions including mounting plate	MM       Length	288
	MM       Depth	40
	MM       Height	53
Arm	Standard
	Parallel Arm Bracket
	Slide Arm
	Slide Arm & Hold Open Arm
	Hold Open Arm
Closing Speed (adjustable)
Latching Speed (adjustable)
Back Check (adjustable)
Delay Action
Single Action
Tested According to EN
Certified According to EU Directive
