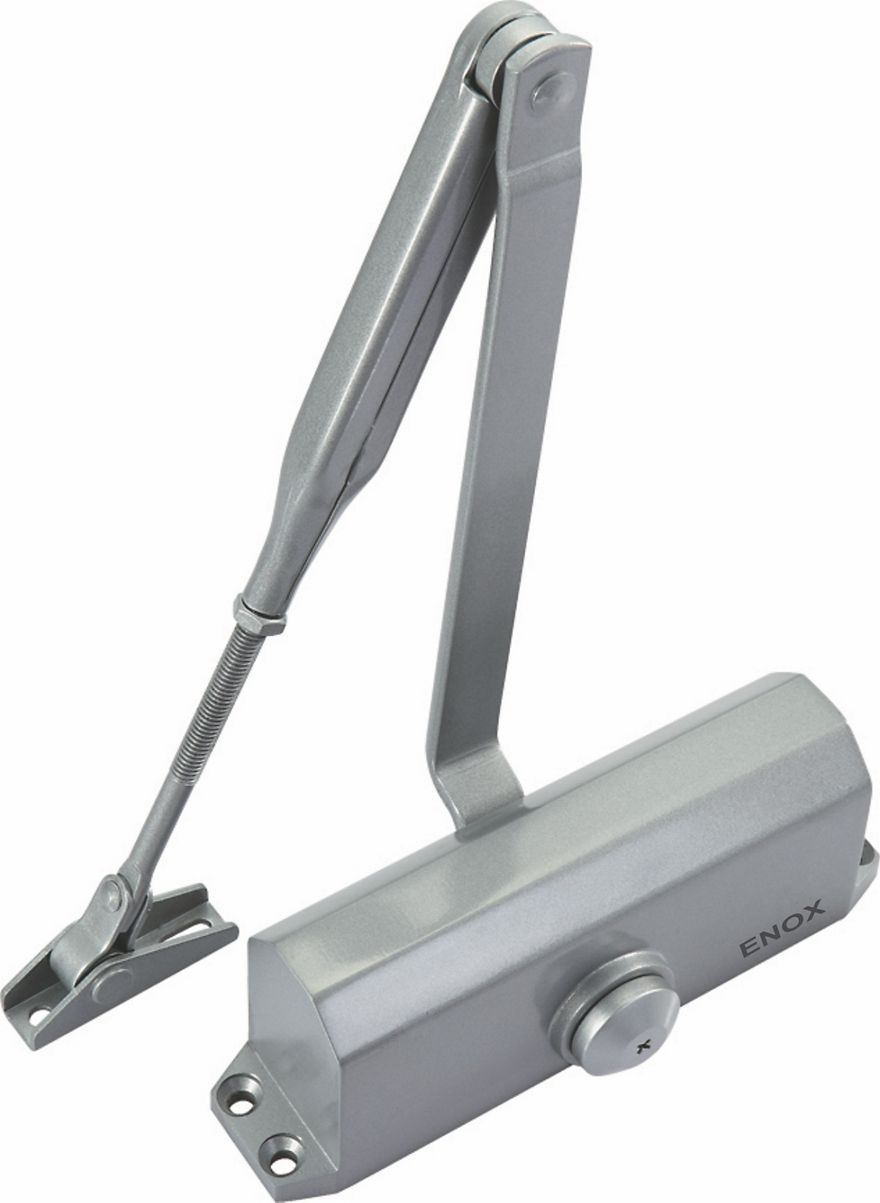

TS - 780
Door Closer with selectable closing force EN 2/3/4
Features :
- Hydraulic closing with two stage closing control.
- Closing force 2/3 according to EN for door width up to 950 mm adjustable by moving the door closer.
- With standard arm.
- Same version DIN left and DIN right.
- Mounting height only 42 mm.
- Maximum Door Weight - 60 kgs.
- Maximum Door Width - 950 mm.
- Maximum Angle of door Opening - 180°.
- Tested - 500,000 Cycles.
- Finish - Silver.

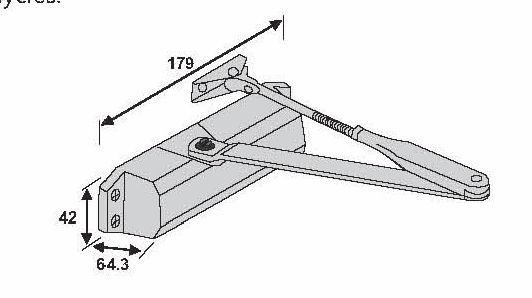

Dimension detail of Hinge Side
DIN left-door, DIN right laterally reversed
Standard mounting, hinge side

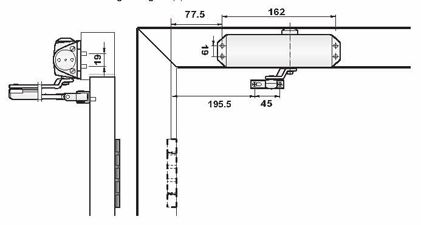

Dimension detail of Hinge-opposite Side
DIN left-door, DIN right laterally reversed
Head mounting, hinge-opposite side
Closing Force EN 2 / 3
