ETC - 002 / 003 / 004

Floor Spring with force EN 2/3/4

Features :

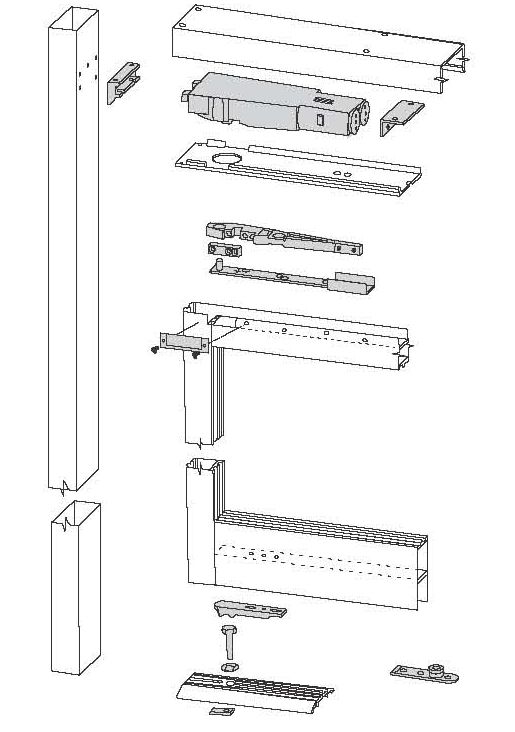

  • Transom for single-leaf single action / double action swing door. Installation in the floor.
  • High quality cast iron mechanism body.
  • Provided with door stop function and explosion proof device. Suitable for wooden, glass and alu etc. all kinds of door.
  • Maximum door opening angle in each direction : 130°.
  • Controllable closing angle : 90° +15° -0°.
  • The width inside the frame can be adjusted by 10mm, length by 7mm and height 4mm.
  • Maximum door width - 850mm / 950mm / 1100mm.
  • Maximum door weight 70kgs / 105kgs / 150kgs.
  • Tested - 500,000 Cycles.
  • Cover plate finish : Satin Stainless Steel.

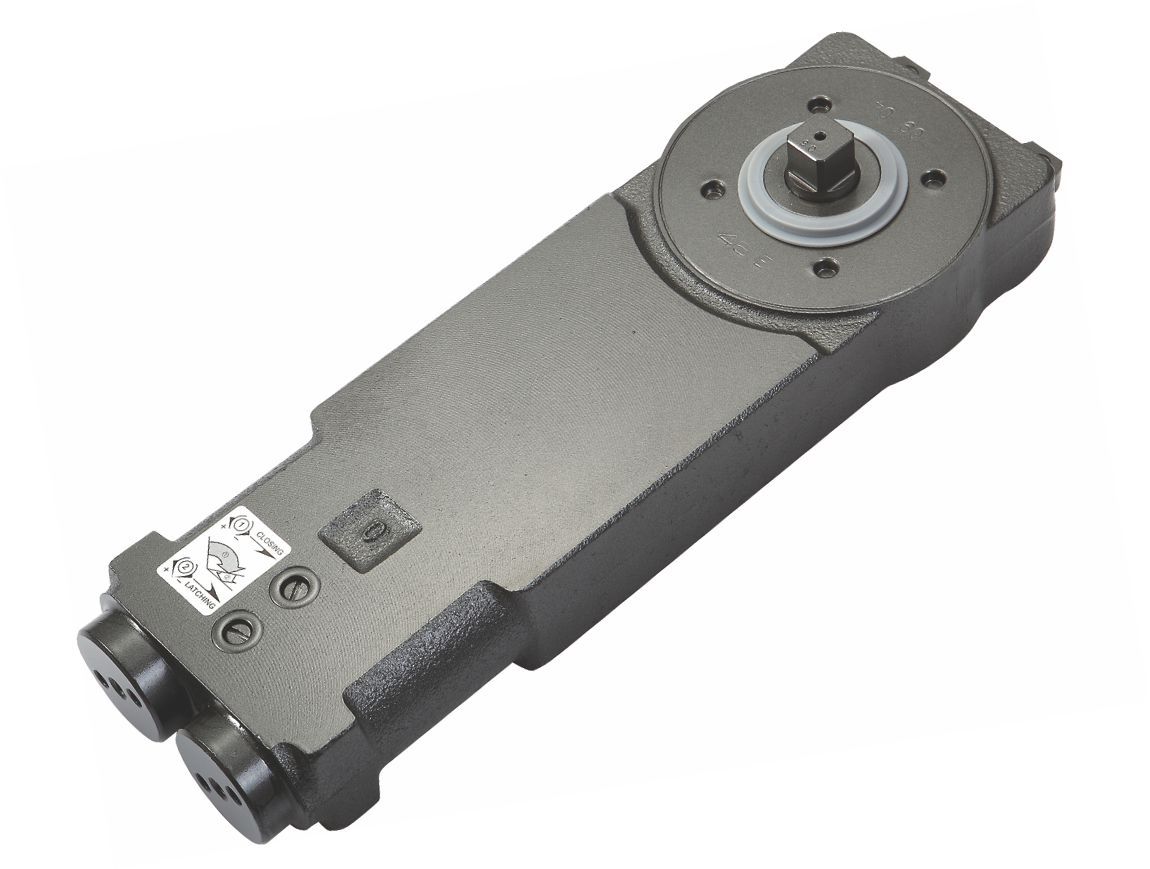

Floor Spring Mechanism

Special Features   ETC 002 ETC 003 ETC 004
Closing Force Size According to EN   2 3 4
Door Width Size According to EN  ≤850
≤650
≤1100

Door Weight Max (in Kgs)   70 105 150
Dimensions including mounting plate MM       Length 306 306 306
MM       Depth 108 108 108
MM       Height 40 40 40
Hold Open 90° or 105°
Door Opening Angle   130° 130° 130°
Closing Speed (adjustable)
Latching Speed(adjustable)
Back Check
Interchangeable Spindle
Tested According to EN
Certified according to EU-Directive
