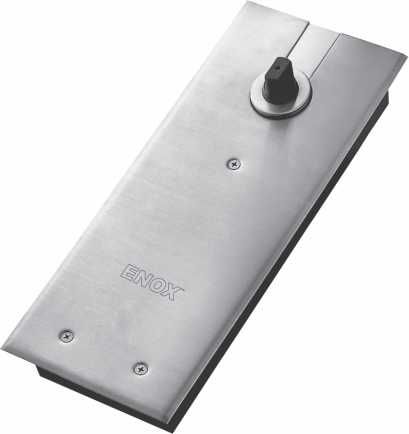

ENOX Floor Spring FH - 842 / 843 / 844

Floor Spring closing force EN 2/3/4

Features

• The FH 842/843/844/844H floor door closer is distinguished by its particularly flat design which makes it the ideal door closer for single-leaf latching and swinging doors.
• The overall height of only 40 mm enables easy installation.
• The FH is available in size EN 2/3/4.
• Tested acc. to EN 1154 A

Classification Number of FH - 843

Classification Number of FH - 844

Floor Spring Mechanism

Special Features		FH 842	FH 843	FH 844
Closing Force Size According to EN		2	3	4
Door Width Size According to EN	≤850
	≤950
	≤1100
Door Weight Max (in Kgs)		70	105	150

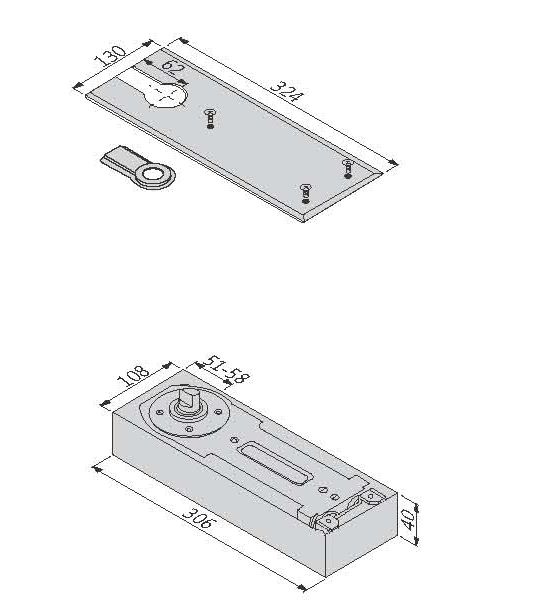

Dimensions including mounting plate	MM       Length	306	306	306
	MM       Depth	108	108	108
	MM       Height	40	40	40
Hold Open 90°
Door Opening Angle		130°	130°	130°
Closing Speed (adjustable)
Latching Speed (adjustable)
Back Check
DIN Left / Right
Tested According to EN
Suitable for fire and smoke control doors not permitted when using with hold-open
Certified according to EU-Directive
