ENOX Glass Cabinet Sliding Fitting EGSF - 001 A

Glass Sliding Fitting for Small Cabinet

         EGSF - 001 A (6mm Glass)

         Glass Sliding Fitting for Small Cabinet

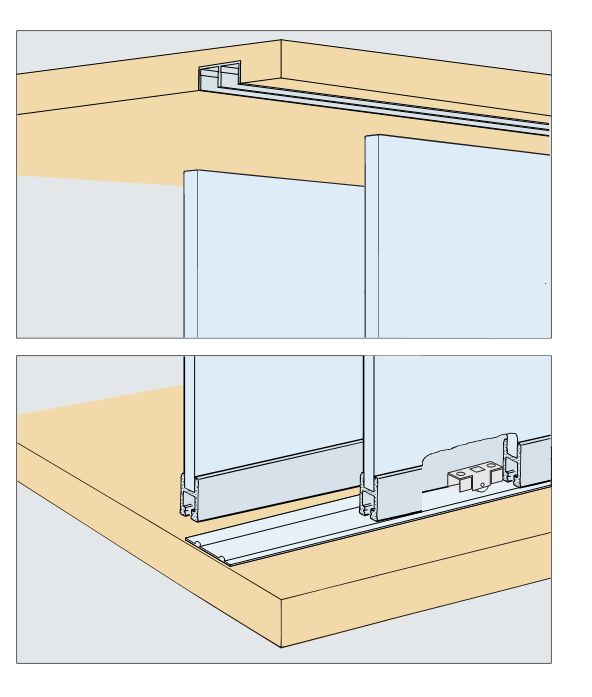

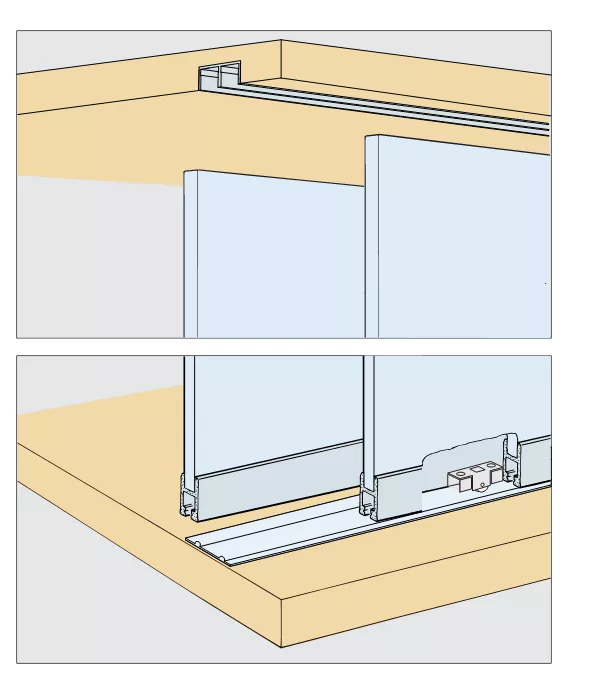

         Features of the Enox Glass Sliding Fitting for Small Cabinet EGSF - 001 A

  • Top & bottom track, groove mounted.
  • With bottom running track.
  • Without fascia.
  • With running gear for concealed fixing.
  • For 2 glass doors.
  • Aluminium glass fixing profile 25/10 mm.
  • Maximum Glass Weight : 15kgs/Panel.



EGSF - 007 - 2 Doors Kit

EGSF - 007

Maximum Glass Weight:15kgs/Panel.
EGSF - 001 A

EGSF - 001 A

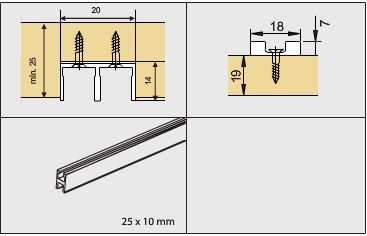

Aluminium anodized top track, bottom track and glass fixing profile.
Features :

  • Finish : Aluminium anodized.
  • Size : 3000 mm.

EGSF - 008
EGSF - 008
Push lock for cabinet glass sliding fitting on bottom fixing profile.



Ordering Information for EGSF - 001 A(6mm Glass)(Cabinet Sliding Fitting - Glass Sliding Solution)



Product Code EGSF - 007 EGSF - 001 A EGSF - 008
Quantity for 2 doors 1 Set 1 Set Optional

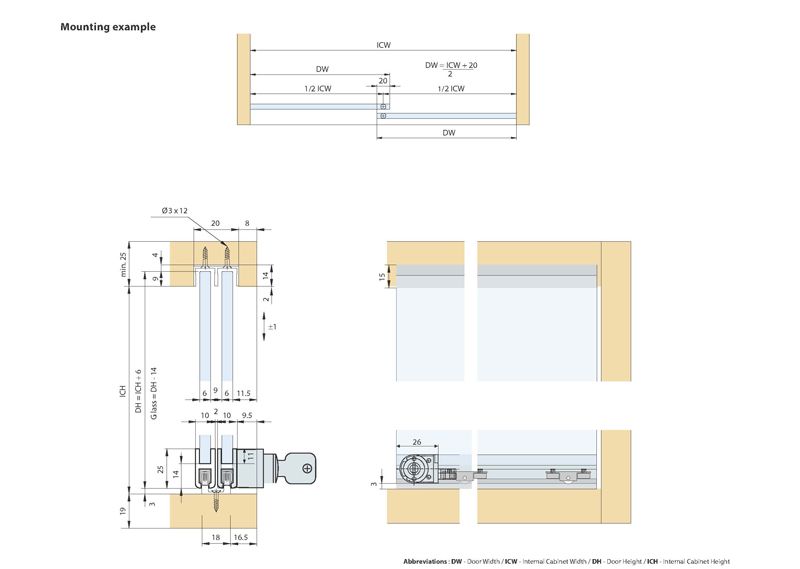

Abbrevations: DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height
