ENOX Glass Cabinet Sliding Fitting EGSF - 015

Glass Sliding Fitting for Small Cabinet

         EGSF - 015

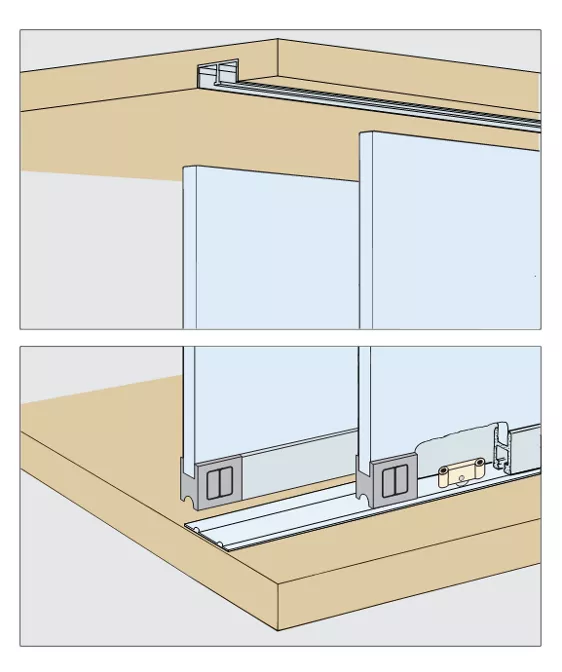

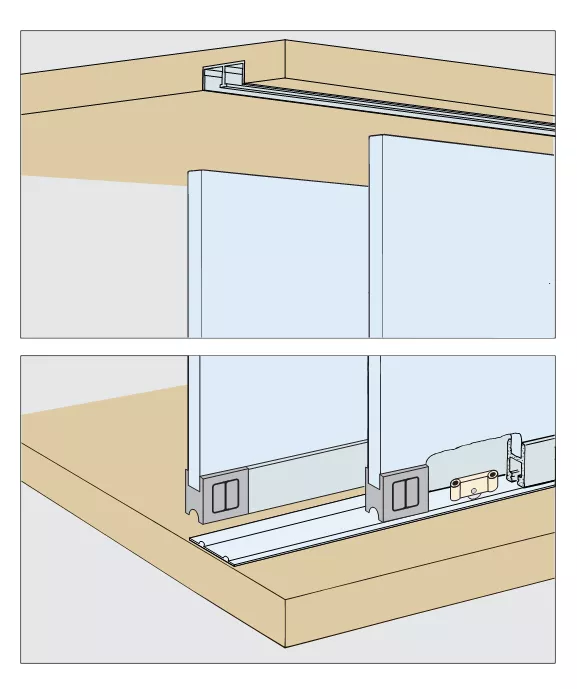

         Glass Sliding Fitting for Small Cabinet:

         Features of the ENOX Glass Sliding Fitting for Small Cabinet EGSF - 015

  • Top & bottom track, groove mounted.
  • With bottom running track.
  • Without fascia.
  • With running gear for concealed fixing.
  • For 2 glass doors.
  • Aluminium glass fixing profile 29/10 mm.
  • Maximum glass weight : 15kgs/Panel.
EGSF - 016
EGSF - 016
Maximum Glass Weight : 15kgs/Panel.
EGSF - 016 - 2 Doors kit

EGSF - 015

EGSF - 015
Aluminium anodized top track, bottom track and glass fixing profile.
Features :

  • Finish : Aluminium anodized.
  • Size : 3000mm.

EGSF - 008
EGSF - 008
Push lock for cabinet glass sliding fitting on bottom fixing profile




Ordering Information for EGSF - 001 A(6mm Glass)
Product Code EGSF - 016 EGSF - 015 EGSF - 008
Quantity for 2 doors 1 Set 1 Set Optional

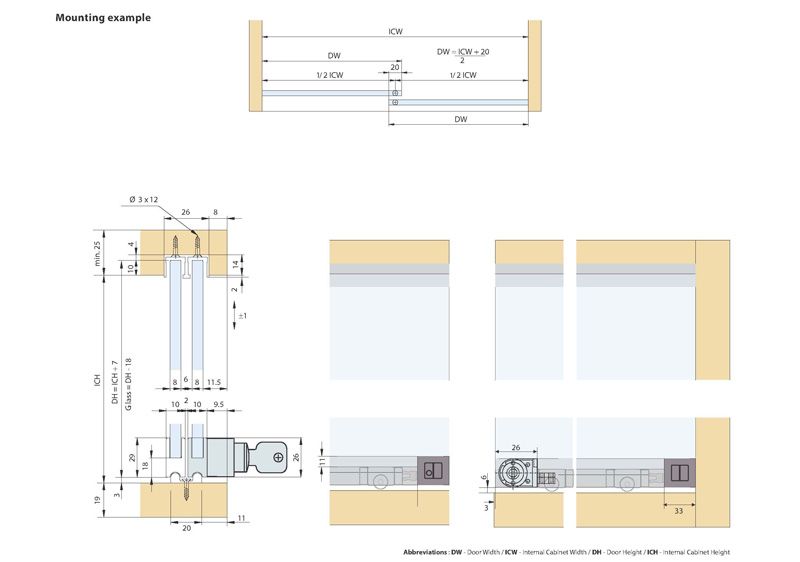

Abbrevations: DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height
