ENOX Glass Cabinet Sliding Fitting ESLD - 064

Glass Sliding Fitting for Small Cabinet

         ESLD - 064

         Glass Sliding Fitting for Small Cabinet

         Features of the ENOX Glass Sliding Fitting For Small Cabinet ESLD - 064

  • Running & guide track screw-on.
  • For 1 glass door.
  • Maximum Glass Weight : 15kgs/Panel.

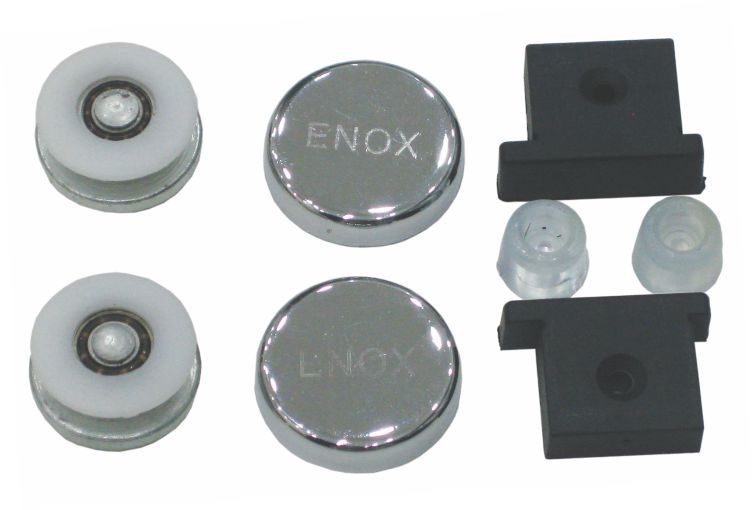

ESLD - 064 - 1 Door Kit

ESLD - 064
Maximum Glass Weight : 15kgs/Panel.
EGSF - 064 - 1 Doors Kit.


 ESC- 064

ESC - 064
Aluminium anodized single sliding track non-drilled.
Features :

  • Finish : Aluminium anodized.
  • Size : 3000mm.
 ESC- 068

ESC - 068
Aluminium anodized single sliding track non-drilled.
Features :

  • Finish : Aluminium anodized.
  • Size : 3000mm.




Ordering Information -  for ESLD - 064



Product Code ESLD - 064 ESC - 064 ESC-068
Quantity for 2 doors 1 Set 1 Set Optional

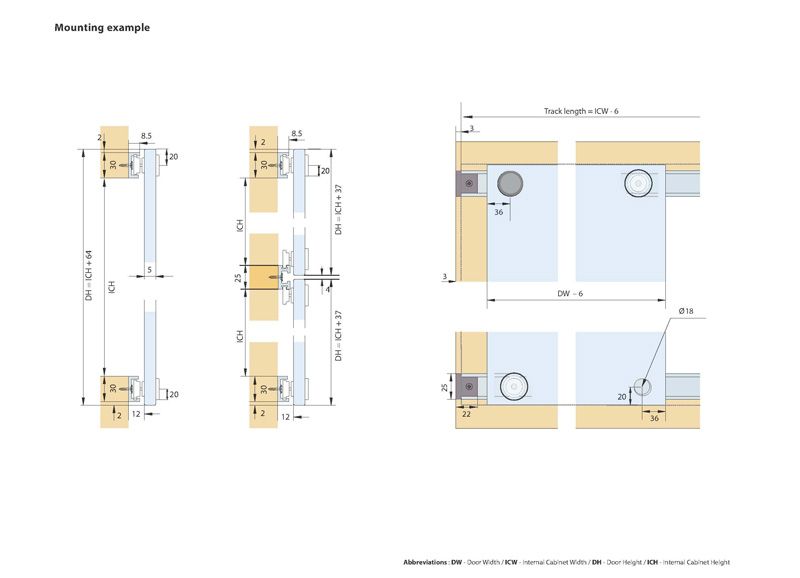

Abbrevations:  DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height
