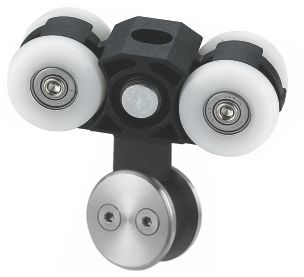

ENOX Glass Sliding Fitting System SGSF - 022

Glass Sliding Fitting

         SGSF - 022

         Glass Sliding Fitting

         Features of ENOX Glass Sliding Fitting SGSF - 022

  • Stainless Steel body.
  • For 10 mm to 12 mm glass.
  • Nylon wheels with integrated bearings.
  • For straight glass sliding door.
  • Trouble free operation.
  • Easy to assemble & dismantle the glass..
  • Maximum Glass Weight : 90kgs/Panel.
SGSF - 022

SGSF - 022
Maximum Glass Weight : 90kgs/Panel.
SGSF - 029

SGSF - 029
Alumnium anodized single top track non-drilled
Features :
Finish: Aluminium anodized.
Size: 3600 mm.
SGSF - 030

SGSF - 030
Alumnium anodized double top track non-drilled
Features :
Finish: Aluminium anodized.
SGSF - 031

SGSF - 031
Aluminium anodized top track with side light fixing track non-drilled
Features :
Finish: Aluminium anodized.
Size:3600 mm.
SGSF - 007

SGSF -007
Floor guide
Features :
Material: White Metal.
Finish: Brushed nickel (BN).
SGSF - 023

SGSF - 023
Stopper
Features :
Material: PVC.
Finish: White.

SGSF - 024

SGSF - 024
End bracket
Features :
Material: PVC.
Finish: Black.
SGSF - 132

SGSF - 132
Aluminium anodized single top track with SS cover profile
Features :
Material of Cover Profile: Stainless steel.
Finish of Cover Profile: Satin stainless steel.
SGSF - 025

SGSF - 025
L clamp for fixing sliding track into wall
Features :
Material: Stainless steel.
Finish: Satin stainless steel.
SGSF - 026

SGSF - 026
Clamp for fixing sliding track into glass
Features :
Material: Stainless steel.
Finish: Satin Stainless steel.
Ordering Information  for SGSF - 022 (Glass Sliding Fitting - Glass Sliding Solution)



Product Code SGSF-022 SGSF-029# SGSF-030# SGSF-031# SGSF-132#
Quantity for 1 door 1 Set 1 Pcs 1 Pcs 1 Pcs 1 Pcs
SGSF-023 SGSF-007 SGSF-024 SGSF-025 SGSF-026
2 Pcs 1 Pcs Optional Optional Optional



#Req. any one, one pcs please check accordingly.
