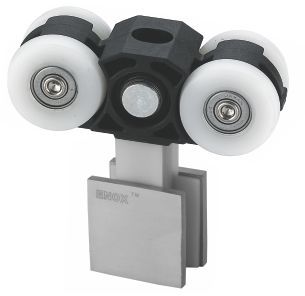

ENOX Glass Sliding Fitting System SGSF - 048

Glass Sliding Fitting

         SGSF - 048

         Glass Sliding Fitting

         Features of Glass Sliding Fitting System SGSF - 048:

  • Stainless Steel body.
  • For 10 mm to 12 mm glass.
  • Nylon wheels with integrated bearings.
  • For straight glass sliding door.
  • Trouble free operation.
  • Easy to assemble & dismantle the glass.
  • Maximum Glass Weight : 90kgs/Panel.
SGSF - 048

SGSF - 048
Maximum Glass Weight : 90kgs/Panel.
SGSF - 029

SGSF - 029
Alumnium anodized single top track non-drilled
Features :

  • Finish: Aluminium anodized.
  • Size: 3600 mm.
SGSF - 030

SGSF - 030
Alumnium anodized double top track non-drilled
Features :

  • Finish: Aluminium anodized.
SGSF - 031

SGSF - 031
Aluminium anodized top track with side light fixing track non-drilled.
Features :

  • Finish: Aluminium anodized.
  • Size: 3600 mm.
SGSF - 007

SGSF -007
Floor guide
Features :

  • Material: White Metal
  • Finish: Brushed nickel (BN).
SGSF - 023

SGSF - 023
Stopper
Features :

  • Material: PVC.
  • Finish: White.
SGSF - 024

SGSF - 024
End bracket
Features :

  • Material: PVC.
  • Finish: Black.
SGSF - 132

SGSF - 132
Aluminium anodized single top track with SS cover profile.
Features :

  • Material of Cover Profile: Stainless steel.
  • Finish of Cover Profile: Satin stainless steel.
SGSF - 025

SGSF - 025
L clamp for fixing sliding track into wall.
Features :

  • Material: Stainless steel.
  • Finish : Satin stainless steel.
SGSF - 026

SGSF - 026
Clamp for fixing sliding track into glass.
Features :

  • Material: Stainless steel.
  • Finish:  Satin Stainless steel.
Ordering Information  for SGSF - 048(Glass Sliding Fitting Synchro - Glass Sliding Solution)



Product Code SGSF-048 SGSF-029# SGSF-030# SGSF-031# SGSF-132#
Quantity for 1 doors 1 Set 1 Pcs 1 Pcs 1 Pcs 1 Pcs
SGSF-023 SGSF-007 SGSF-024 SGSF-025 SGSF-026
2 Pcs 1 Pcs Optional Optional Optional



#Req. any one, one pcs please check accordingly.
