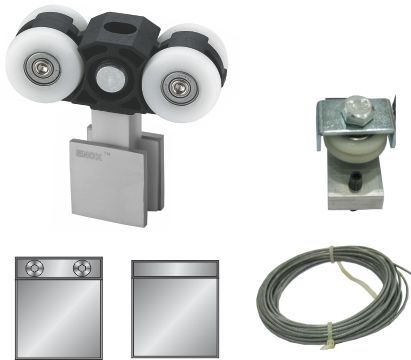

ENOX Glass Sliding Fitting System SGSF - 048H

Glass Sliding Fitting - Synchro

         SGSF - 048H

         Glass Sliding Fitting - Synchro

         Features of ENOX Glass Sliding Fitting System SGSF - 048H

  • Stainless Steel body.
  • For 10 mm to 12 mm glass.
  • Nylon wheels with integrated bearings.

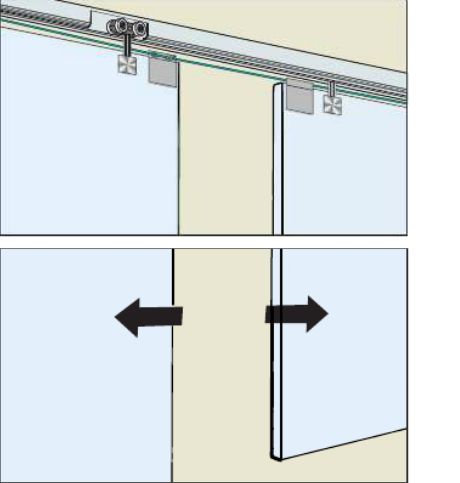

  • For straight glass synchronized door.
  • Trouble free operation.
  • Easy to assemble & dismantle the glass..
  • Maximum Glass Weight : 90kgs/Panel.
SGSF - 048H

SGSF - 048H-Synchro
Maximum Glass Weight : 90kgs/Panel.
SGSF - 029

SGSF - 029
Alumnium anodized single top track non-drilled
Features :

  • Finish : Aluminium anodized.
  • Size : 3600 mm
SGSF - 031

SGSF - 031
Aluminium anodized top track with side light fixing track non-drilled.
Features :

  • Finish : Aluminium anodized.
  • Size : 3600 mm
SGSF - 007

SGSF - 007
Floor guide
Features :

  • Material : White Metal.
  • Finish : Brushed Nickel (BN).
SGSF - 023

SGSF - 023
Stopper.
Features :

  • Material : PVC.
  • Finish : White.
SGSF - 024

SGSF - 024
End bracket
Features :

  • Material : PVC.
  • Finish : Black.
SGSF - 132

SGSF - 132
Aluminium anodized single top track with SS cover profile.
Features :

  • Material of Cover Profile : Stainless steel.
  • Finish of Cover Profile : Satin stainless steel.
Ordering Information  for SGSF - 048H (Glass Sliding Fitting Synchro - Glass Sliding Solution)



Product Code SGSF-048H SGSF-029# SGSF-031# SGSF-132# SGSF-007 SGSF-023 SGSF-024
Quantity for 2 doors 1 Set 1 Pcs 1 Pcs 1 Pcs 2 Pcs 2 Pcs Optional



#Req. any one, one pcs please check accordingly.

Abbrevations:TH - Total Height DW - Door Width FO - Frame Opening
