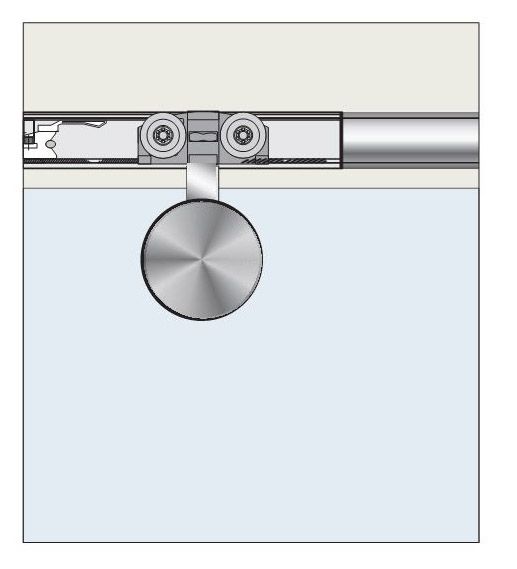

Glass Sliding Fitting
SGSF - 061
Glass Sliding Fitting
Features of Glass Sliding Fitting System SGSF - 061
- Stainless Steel body.
- For 10 mm to 12 mm glass.
- Nylon wheels with integrated bearings.
- For straight glass Sliding door.
- Trouble free operation.
- Easy to assemble & dismantle the glass..
- Maximum Glass Weight : 100kgs/Panel.
| SGSF - 061 |
|
| SGSF - 061
Maximum Glass Weight : 100kgs/Panel. |  |
| SGSF - 062 |
|
| SGSF - 062
Alumnium anodized single top track with cover non-drilled
Features : - Finish : Aluminium anodized.
- Size : 3600 mm.
|  |
| SGSF - 063 - R/L |
|
| SGSF - 063 L/R
End Bracket
Features : |
|
| SGSF - 007 |
|
| SGSF - 007
Floor guide
Features : - Material : White Metal.
- Finish : Brushed nickel (BN).
|
|
| SGSF - 023 |
|
| SGSF - 023
Stopper
Features : - Material : PVC
- Finish : White.
|
|
| SGSF - 026 |
|
| SGSF - 026
Clamp for fixing sliding track into glass
Features : - Material : Stainless steel.
- Finish : Satin Stainless steel.
|
|
| Ordering Information for SGSF - 061 (Glass Sliding Fitting - Glass Sliding Solution) |
| Product Code | SGSF-061 | SGSF-062# | SGSF-007# | SGSF-023# |
| Quantity for 1 doors | 2 Pcs | 1 Pcs | 1 Pcs | 2 Pcs |
| SGSF-063 R/L | SGSF-026 |
| 2 Pcs | Optional |
#Req. any one, one pcs please check accordingly.
