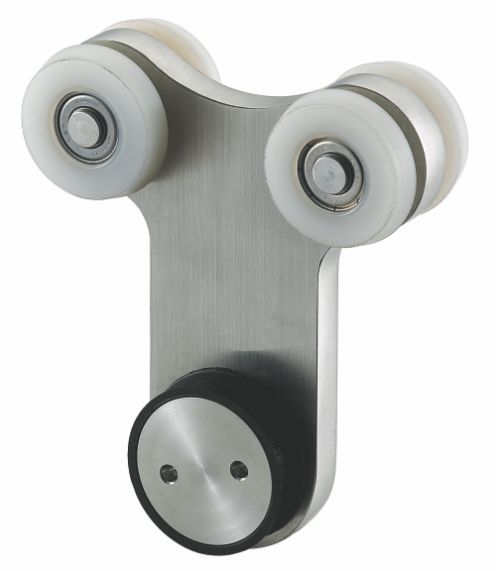

ENOX Glass Sliding Fitting System SGSF - 064

Glass Sliding Fitting (Offset)

         SGSF - 064

         Glass Sliding Fitting(Offset)

         Features of ENOX Glass Sliding Fitting SGSF - 064

  • Stainless Steel body.
  • For 10 mm to 12 mm glass.
  • Nylon wheels with integrated bearings.
  • For straight glass sliding door.
  • Trouble free operation.
  • Easy to assemble & dismantle the glass..
  • Maximum Glass Weight : 100kgs/Panel.
SGSF - 064

SGSF - 064
Maximum Glass Weight : 100kgs/Panel.
SGSF - 029

SGSF - 029
Alumnium anodized single top track non-drilled
Features :

  • Finish : Aluminium anodized.
  • Size : 3600 mm.
SGSF - 030

SGSF - 030
Alumnium anodized double top track non-drilled
Features :

  • Finish : Aluminium anodized.


SGSF - 031

SGSF - 031
Aluminium anodized top track with side light fixing track non-drilled
Features :

  • Finish : Aluminium anodized
  • Size : 3600 mm


SGSF - 007

SGSF -007
Floor guide
Features :

  • Material : White Metal
  • Finish : Brushed nickel (BN).


SGSF - 023

SGSF - 023
Stopper
Features :

  • Material : PVC
  • Finish : White.


SGSF - 024

SGSF - 024
End bracket
Features :

  • Material : PVC.
  • Finish : Black.


SGSF - 132

SGSF - 132
Aluminium anodized single top track with SS cover profile.
Features :

  • Material of Cover Profile : Stainless steel.
  • Finish of Cover Profile : Satin stainless steel.


SGSF - 025

SGSF - 025
L clamp for fixing sliding track into wall
Features :

  • Material : Stainless steel.
  • Finish : Satin stainless steel.


SGSF - 026

SGSF - 026
Clamp for fixing sliding track into glass
Features :

  • Material : Stainless steel.
  • Finish : Satin Stainless steel.


Ordering Information  for SGSF - 064 (Glass Sliding Fitting - Glass Sliding Solution)



Product Code SGSF-064 SGSF-029# SGSF-030# SGSF-132#
Quantity for 1 doors 2Pcs 1 Pcs 1 Pcs 1 Pcs
SGSF-023 SGSF-007 SGSF-024 SGSF-025 SGSF-026
2 Pcs 1 Pcs Optional Optional Optional



#Req. any one, one pcs please check accordingly.

1 of 3
