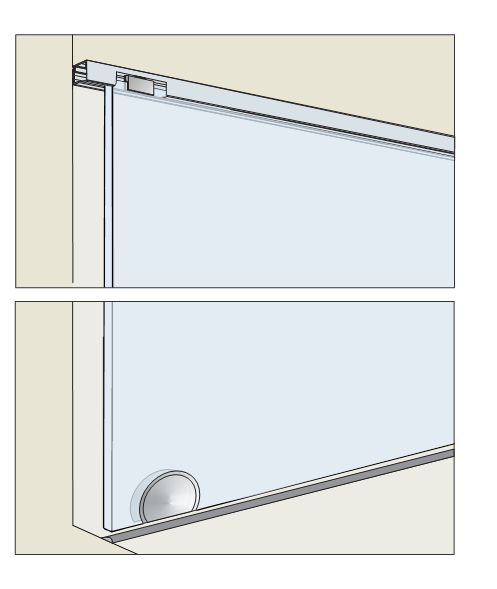

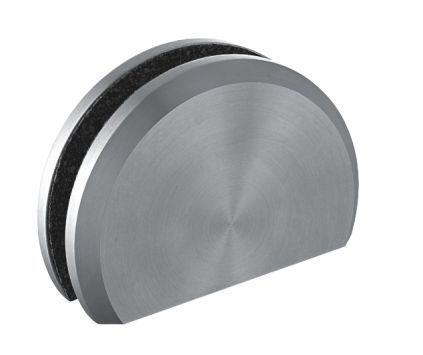

ENOX Glass Sliding Fitting System SGSF - 119

Swift Glass Sliding Fitting with Bottom Roller

         SGSF - 119

         Swift Glass Sliding Fitting with Bottom Roller

         Features of ENOX Glass Sliding Fitting System SGSF - 119

  • Stainless Steel body.
  • For 10 mm to 12 mm glass.
  • Nylon wheels with integrated bearings.
  • For straight glass sliding door.
  • Trouble free operation.
  • Easy to assemble & dismantle the glass..
  • Maximum Glass Weight : 100kgs/Panel.

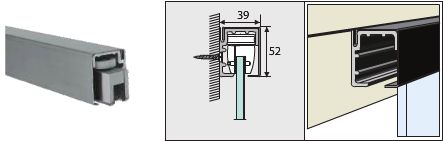

SGSF - 121

SGSF - 121
Alumnium anodized top track with S.S. cover Fascia non-drilled
Features :

  • Finish : Aluminium anodized.
  • Size: 2000 mm.

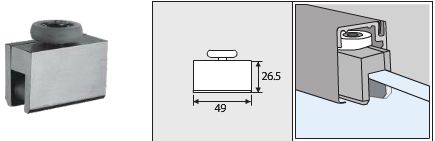

SGSF - 122

SGSF - 122
Top sliding fitting
Features :

  • Material : Stainless Steel.
  • Finish: Satin Stainless Steel.

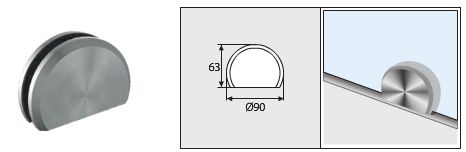

SGSF - 119

SGSF - 119
Swift sliding fitting for bottom
Features :

  • Finish : Stainless Steel.

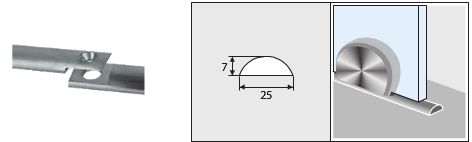

SGSF - 120

SGSF - 120
Soft-close system.
Features :

  • Finish : Aluminium anodized.
  • Size : 2000 mm.
SGSF - 123L/R

SGSF - 123L/R
Adapter for ESLD - 1001
Features :

  • Material : Aluminium.
  • Finish : Aluminium anodized.
SGSF - 124

SGSF - 124
End bracket
Features :

  • Material : Stainless steel.
  • Finish : Satin stainless steel.
Ordering Information  for SGSF - 119 (Glass Sliding Fitting - Glass Sliding Solution)



Product Code SGSF-119 SGSF-121 SGSF-122 SGSF-120
Quantity for 1 doors 2 Pcs 1 Pcs 2 Pcs 1 Pcs
SGSF-123 R/L SGSF-124
2 Pcs Optional



#Req. any one, one pcs please check accordingly.

Abbrevations:TH - Total Height
