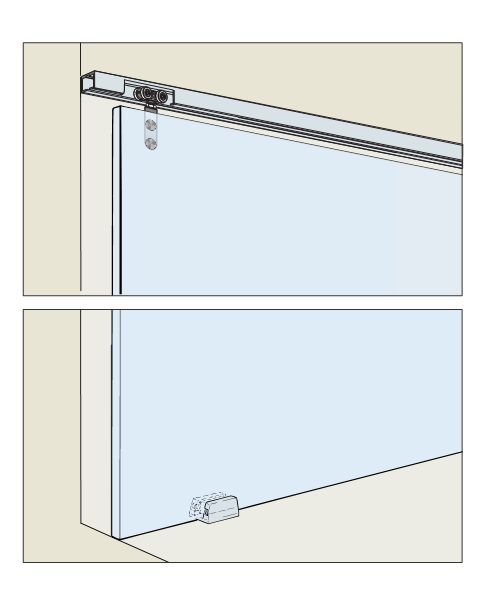

ENOX Glass Sliding Fitting System SGSF - 125

Glass Sliding Fitting

         SGSF - 125

         Glass Sliding Fitting

         Features of ENOX Glass Sliding Fitting System SGSF - 125

  • Stainless Steel body.
  • For 10 mm to 12 mm glass.
  • Nylon wheels with integrated bearings.
  • For straight glass sliding door.
  • Trouble free operation.
  • Easy to assemble & dismantle the glass..
  • Maximum Glass Weight : 100kgs/Panel.
SGSF - 125

SGSF - 125
Maximum Glass Weight : 100kgs/Panel.
SGSF - 029

SGSF - 029
Alumnium anodized single top track non-drilled
Features :

  • Finish: Aluminium anodized.
  • Size: 3600mm
SGSF - 030

SGSF - 030
Alumnium anodized double top track non-drilled.
Features :

  • Finish: Aluminium anodized.
SGSF - 031

SGSF - 031
Aluminium anodized top track with side light fixing track non-drilled..
Features :

  • Finish:Aluminium anodized.
  • Size: 3600 mm.

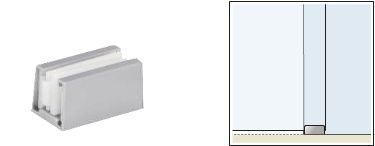

SGSF - 007

SGSF -007
Floor guide
Features :

  • Material:White Metal.
  • Finish:Brushed nickel (BN).

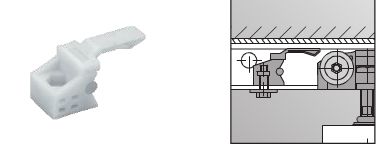

SGSF - 023

SGSF - 023
Stopper
Features :

  • Material:PVC.
  • Finish:White.
SGSF - 024

SGSF - 024
End bracket
Features :

  • Material: PVC.
  • Finish:Black.


SGSF - 132

SGSF - 132
Aluminium anodized single top track with SS cover profile.
Features :

  • Material of Cover Profile:Stainless steel.
  • Finish of Cover Profile:Satin stainless steel.
Ordering Information  for SGSF - 125 (Glass Sliding Fitting - Glass Sliding Solution)



Product Code SGSF-125 SGSF-029# SGSF-030# SGSF-031#
Quantity for 1 doors 2 Pcs 1 Pcs 1 Pcs 2 Pcs
SGSF-132# SGSF-007 SGSF-023 SGSF-024
1 Pcs 1 Pcs 2 Pcs Optional



#Req. any one, one pcs please check accordingly.
