ENOX Glass Cabinet Sliding Fitting ESLD - 1201

EKU Clipo 15 GS Infront

         ESLD - 1201

         EKU Clipo 15 GS Infront

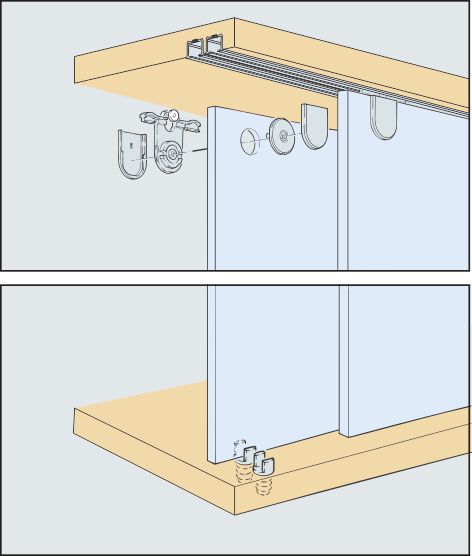

         Features of the ENOX Glass Sliding Fitting for Small Cabinet ESLD - 1201

  • Top track, groove mounted.
  • No groove in the floor.
  • Without fascia.
  • Running gear with screw connection(glass hole : Ø18 mm).
  • For 2 glass door.
  • Maximum Glass Weight : 15kgs/Panel.
 ESLD - 1201 - 2

ESLD - 1201 - 2
EKU Clipo - 15 GS Infront.



ESC- 1201 - A

ESC - 1201 - A
Aluminium anodized single sliding track non-drilled.
Features :

  • Finish : Aluminium anodized.
  • Size : 3500mm




Ordering Information  for ESLD - 1201(Cabinet Sliding Fitting - Glass Sliding Solution)



Product Code ESLD - 1201 - 2 ESC - 1201 - A
Quantity for 2 doors 1 Set 1 Pcs

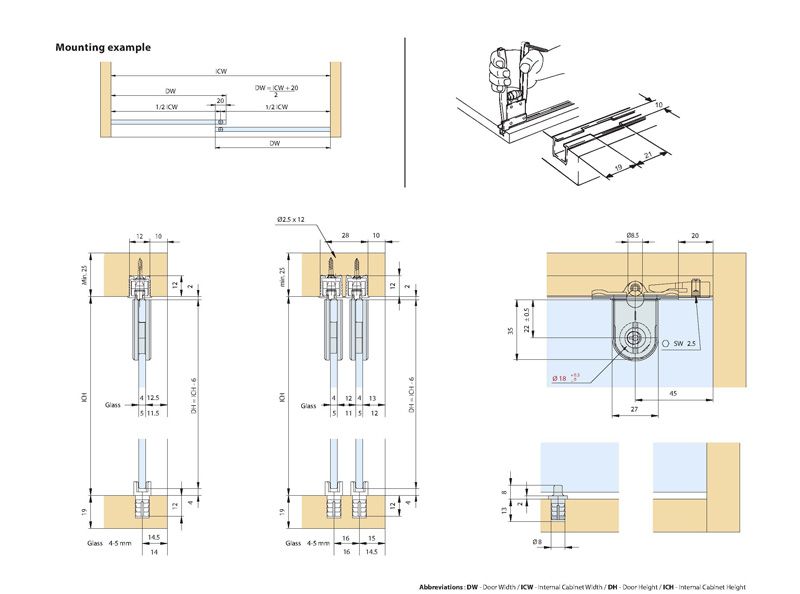

Abbrevations:  DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height
