ENOX Glass Cabinet Sliding Fitting ESLD - 1202

EKU Clipo 15 GK Infront

         ESLD - 1202

         EKU Clipo 15 GK Infront

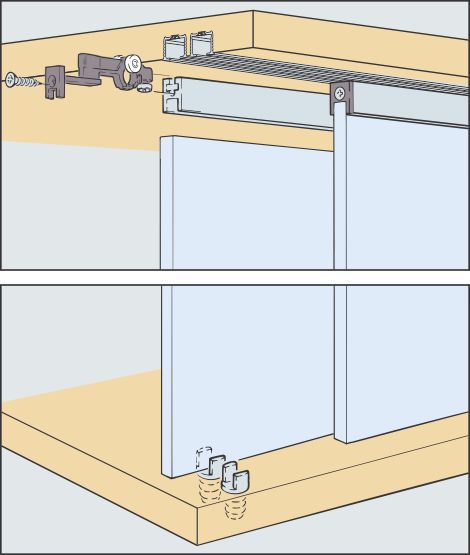

         Features of the ENOX Glass Sliding Fitting For Small Cabinet ESLD - 1202

  • Top track, groove mounted.
  • No groove in the floor.
  • Without fascia.
  • With running gear for concealed fixing.
  • For 2 glass door.
  • Aluminium glass fixing profile 16 / 10 mm.
  • Maximum Glass Weight : 15kgs/Panel.
ESLD - 1202 - 2 - 2 Doors kit

ESLD - 1202 - 2
EKU Clipo - 15 GK Infront.
ESC - 1201 - A

ESC - 1201 - A
Aluminium anodized single sliding track non-drilled.
Features :

  • Finish : Aluminium anodized.
  • Size : 3500mm.
ESC - 1202 - C - 250 / 350

ESC - 1202 - C - 250 / 350
Aluminium anodized glass fixing profile.
Features :

  • Finish : Aluminium anodized.
  • Size : 2500 / 3500mm.



Ordering Information -  for ESLD - 1202



Product Code ESLD - 1202 ESC - 1201 - A ESC - 1202 - C
Quantity for 2 doors 1 Set 1 Pcs 1 Pcs



Abbrevations:  DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height
