ENOX Glass Cabinet Sliding Fitting ESLD - 1204

EKU Clipo 35 GKK Infront

         ESLD - 1204

         EKU Clipo 35 GKK Infront

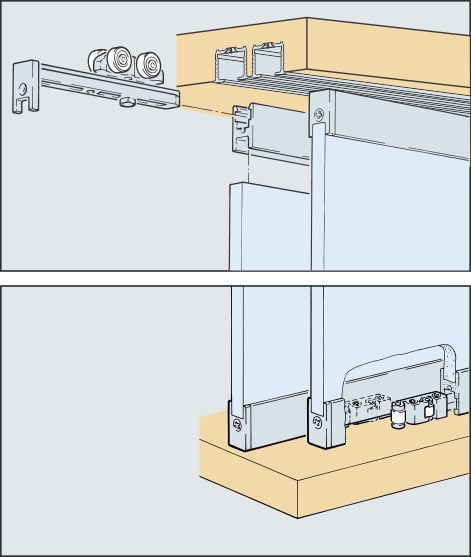

         Features of the ENOX Glass Sliding Fitting for Small Cabinet ESLD - 1204

  • Top track, groove mounted.
  • No groove in the floor.
  • Without fascia.
  • With running gear for concealed fixing.
  • For 1 glass door.
  • Aluminium glass fixing profile 24 / 12 mm.
  • Maximum Glass Weight : 35kgs/Panel.
ESLD - 1204 - 1 Door Kit
ESLD - 1204 - 1
EKU Clipo - 35 GKK Infront

ESC - 1101 - A

ESC - 1101 - A
Aluminium anodized single sliding track non-drilled.
Features :

  • Finish : Aluminium anodized.
  • Size : 3500mm.
ESC - 1204 - C

ESC - 1204 - C
Aluminium anodized glass fixing profile
Features :

  • Finish : Aluminium anodized.
  • Size : 2500 / 3500mm.
ESLD - 1001

ESLD - 1001
Soft-close system
Features :

  • Finish : Aluminium anodized.
  • Size : 2500/3500mm.
ESLD - 1001 - A

ESLD - 1001 - A
Adapter for ESLD - 1001
Features :

  • For 2 doors.
  • Material : Plastic cage grey.
Ordering Information for ESLD - 1204(Cabinet Sliding Fitting - Glass Sliding Solution)



Product Code ESLD - 1204 ESC - 1101 A ESC - 1204 C ESLD - 1001
Quantity for 2 doors 1 Set 1 Pcs 1 Pcs Optional

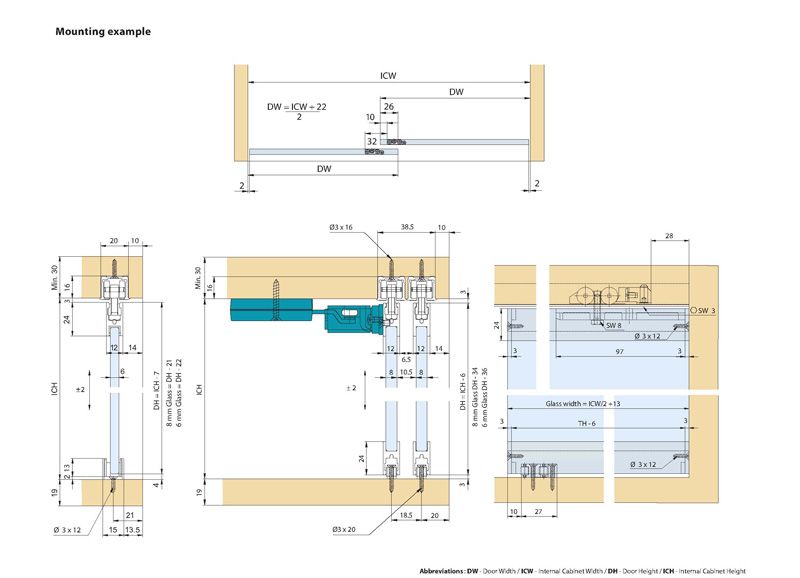

Abbrevations: DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height
