EKU Frontal 25 G Vorfront
ESLD - 1302
EKU Frontal 25 G Vorfront

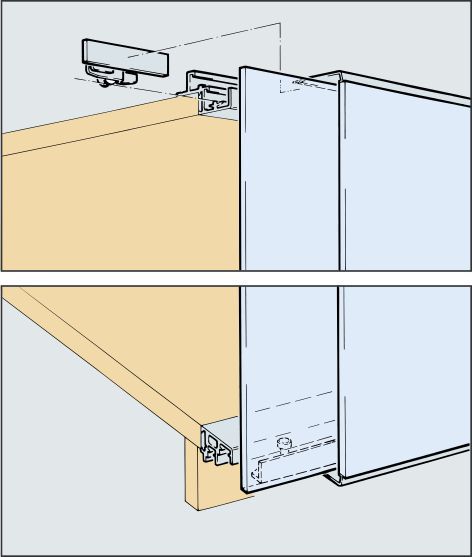

Features of the ENOX Glass Sliding Fitting for Small Cabinet ESLD - 1302
- Running track screw on & guide track clip on.
- For 2 glass doors.
- Maximum Glass Weight : 25kgs/Panel.
| ESLD - 1302 - 2 |
|
ESLD - 1302 - 2
EKU Frontal - 25 G Vorfront
| |
| ESC - 1302 - A |
|
| ESC - 1302 - A
Aluminium anodized double top track, pre-drilled,
Features : - Finish : Aluminium anodized.
- Size : 3500mm.
| |
| ESC - 1302 - B |
|
| ESC - 1302 - B
Aluminium anodized double guide track to clip on,.
Features : - Finish : Aluminium anodized.
- Size : 3500mm.
| |
| ESC - 1302 - C |
|
| ESC - 1302 - C
Aluminium anodized cover profile for ESC - 1302 - A
Features : - Finish : Aluminium anodized.
- Size : 3500mm.
| |
| ESC - 1302 - D |
|
| ESC - 1302 - D
Gluing template for ESLD - 1302
| |
| ESC - 1302 - E |
|
| ESC - 1302 - E
Glue ELCH PRO 3B Silicon-310ml
| |
| ESLD - 1002 |
|
| ESLD - 1002
Soft-close system
| |
| ESLD - 1002 A |
|
| ESLD - 1002 A
Adapter for ESLD - 1302 - 2 (To be fit with ESLD - 1002)
| |
| Ordering Information for ESLD - 1302(Cabinet Sliding Fitting - Glass Sliding Solution) |
| Product Code | ESLD - 1302 - 2 | ESC - 1302 A | ESC - 1302 B | ESC - 1302 C |
| Quantity for 2 doors | 1 Set | 1 Pcs | 1 Pcs | 1 Pcs |
| ESC - 1302 D | ESLD - 1002 | ESLD - 1002 A |
| Optional | 1 Set | 1 Set |

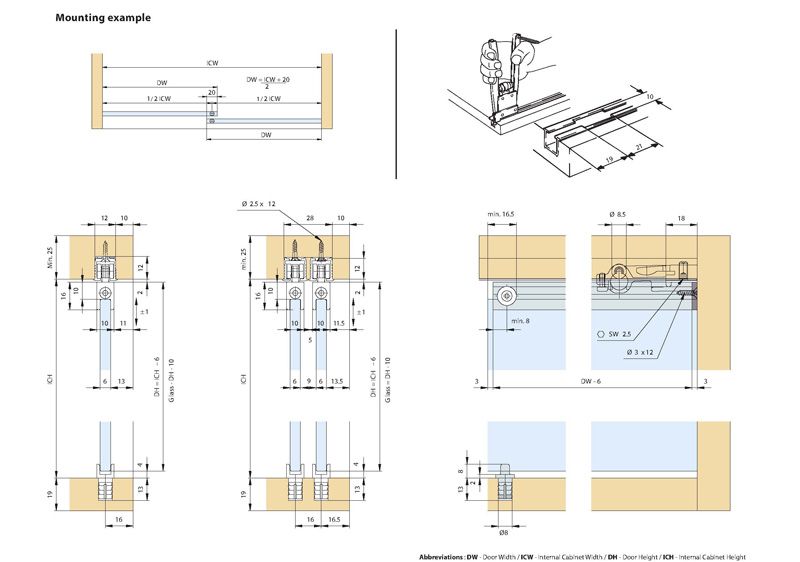

| Abbrevations: DW - Door Width / ICW - Internal Cabinet Width / DH - Door Height / ICH - Internal Cabinet Height |
