ENOX Glass Sliding Folding System - 103 P

Glass Sliding Folding System

         Features:

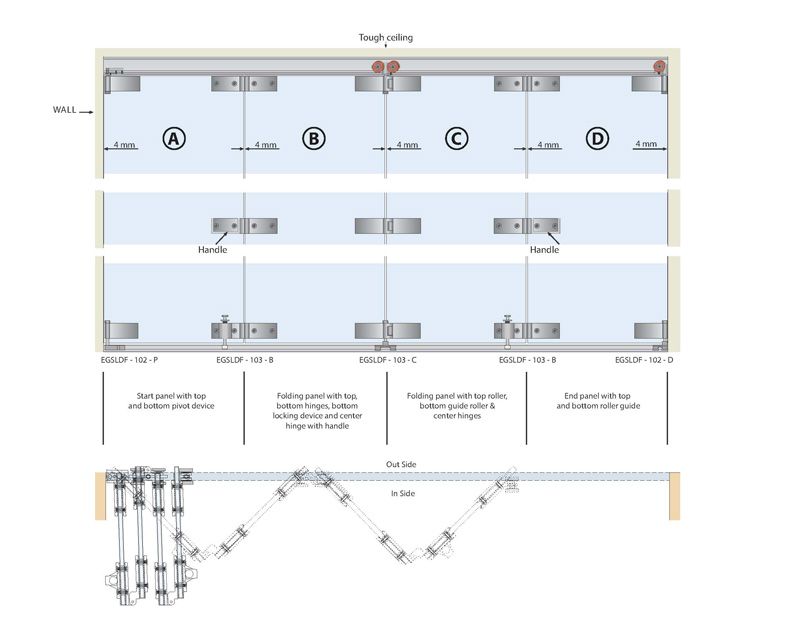

  • Advanced folding mechanism for up to 6 frameless glass panels.
  • Glass folding system is designed for both interior and exterior applications.
  • Nylon wheels with integrated bearings for quite easy running.

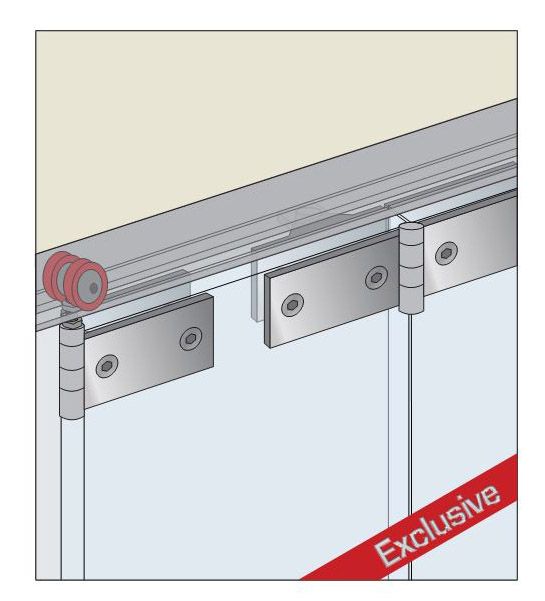

  • Panels are connected using a hinge system.
  • Integrated bolt lock for security.
  • For straight glass sliding door.
  • Trouble free operation.

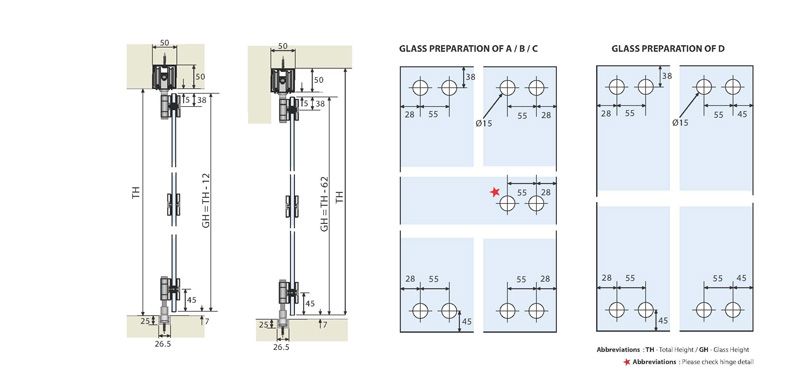

  • Minimum glass width : 500mm.
  • Maximum glass weight : 75kgs/Panel.





ESC - 042
Aluminium anodized top track, non-drilled


ESC - 043
Aluminium anodized bottom track, non-drilled
Features :
PVC track for quiet running.
Size: 3600mm/4800mm.


ESEAL - 013
Top track transculated seal
Features :
Size: 1000mm.


ESEAL - 016
Clear self-adhesive transculated seal
Features :
Transculated seal.
Size: 5000 mm.
