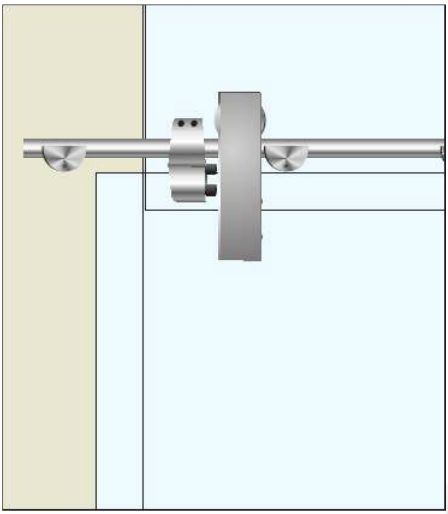

Swift Glass Sliding Door Roller (Flat) SGSF - 103

Swift Glass Sliding Fitting

         SGSF - 103

         Swift Glass Sliding Door Roller (Flat)

         Features of ENOX Swift Glass Sliding Door Roller (Round) SGSF - 103

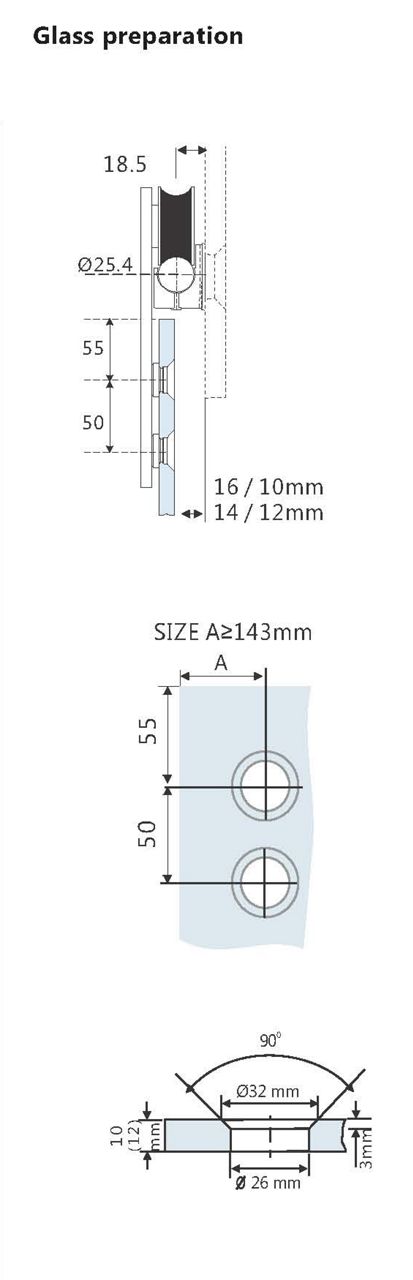

  • For 10 mm to 12 mm Glass Door
  • Large diameter Rollers for smooth running.
  • For straight glass sliding door.
  • Trouble free operation.
  • Material : Stainless Steel.
  • Finish : Satin Stainless Steel.
  • Maximum Glass Weight : 150kgs/Panel.
SGSF - 004

SGSF - 004
Clamp Fixing for Rod (The Connection with Glass).

Features:
  • For 10 mm to 12 mm glass.
  • Finish: Aluminium anodized.
  • Size: 3600 mm.
SGSF - 005

SGSF - 005
Door Stopper (Flat)
Features :

  • Finish :  Satin Stainless Steel.
  • Material : Stainless Steel.
SGSF - 008 A

SGSF - 008 A
Socket for Swift Rod-001 (The Connector for Rod & Wall)
Features :

  • Finish : Satin Stainless Steel.
SWIFT ROD - 001

SWIFT ROD - 001 - Ø25
Floor guide
Features :

  • Material : Stainless Steel.
  • Finish : Satin Stainless Steel.
  • Size : 2000mm / 2500mm / 3000mm / 3600mm.
SGSF - 007 A

SGSF - 007 A
Floor Guide(Oval)
Features :

  • For 10 mm to 12 mm glass.
  • Material : White Metal(Zinc Alloy)
  • Finish : Brushed Nickel(BN).
SGSF - 057

SGSF - 057
Wall to Glass Connector
Features :

  • For 10 mm to 12 mm glass.
  • Material : Stainless steel.
  • Finish : Satin Stainless steel.
SGSF - 010

SGSF - 010
Fixing Fitting for Glass to Glass
Features :

  • For 10 mm to 12 mm glass.
  • Material : Stainless steel.
  • Finish : Satin Stainless steel.

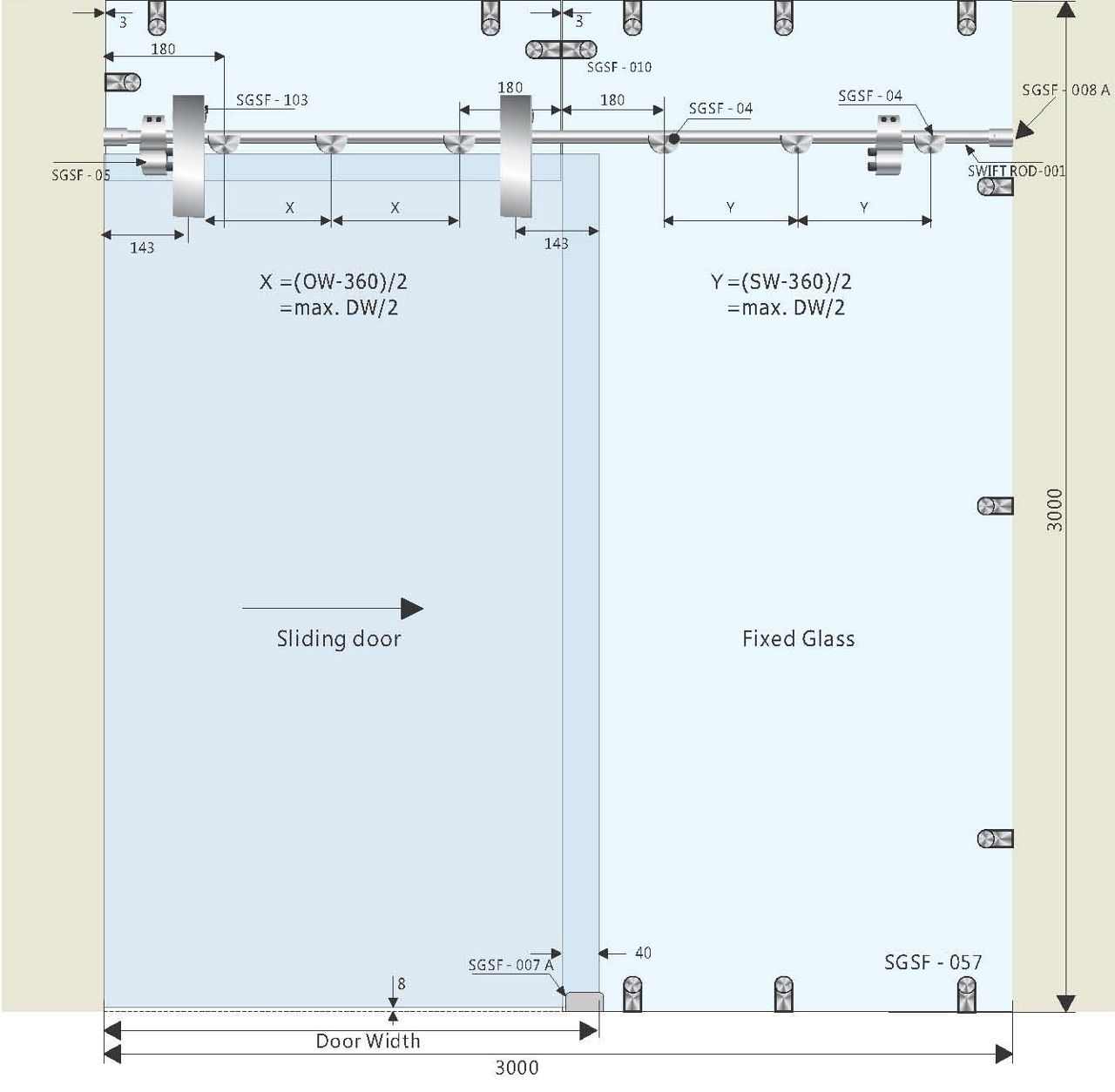

Ordering Information  for SGSF - 103 Full Set



Product Code SGSF-103 SGSF-004 SGSF-005 SGSF-008 A
Quantity for SGSF - 103 - Full Set - 3000mm (10mm)
2 Pcs 6 Pcs 1 Set 2 Pcs
Quantity for SGSF - 103 - Full Set - 3000mm (12mm)
2 Pcs 6 Pcs 1 Set 2 Pcs
Swift rod - 001 SGSF-007 SGSF-057 SGSF-010
1 Pcs (3000mm) 1 Pcs 12 Pcs 1Pcs
1 Pcs (3000mm) 1 Pcs 12Pcs 1 Pcs
