Swift Glass Sliding Fittings - Synchro
SGSF - 075

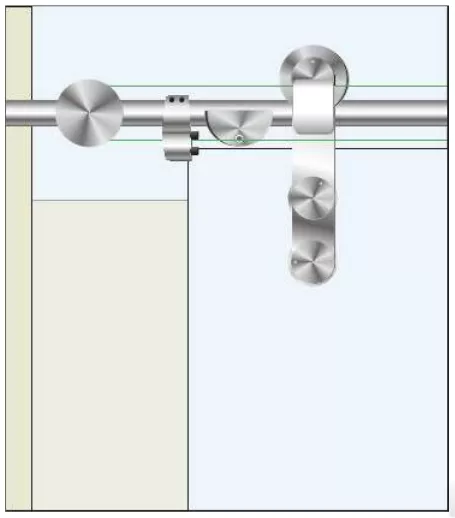

Swift Glass Sliding Roller - Synchro
Features of ENOX Swift Glass Sliding Door Roller (Round) SGSF - 075
- For 10 mm to 12 mm Glass Door
- For 2 Synchronized glass door.
- Trouble free operation.
- Material : Stainless Steel.
- Finish : Satin Stainless Steel.
- Maximum Glass Weight : 150kgs/Panel.
| SGSF - 004 |
|
| SGSF - 004
Clamp Fixing for Rod (The Connection with Glass). Features: - For 10 mm to 12 mm glass.
- Finish: Aluminium anodized.
- Size: 3600 mm.
|
|
| SGSF - 076 |
|
| SGSF - 076
Synchro Cable Holder (Pulley)
Features : - Finish : Satin Stainless Steel.
- Material : Stainless Steel.
|
|
| SGSF - 073 |
|
| SGSF - 073
Door Stopper
Features : - Finish : Satin Stainless Steel.
- Material : Stainless Steel.
|
|
| SGSF - 008 A |
|
| SGSF - 008 A
Socket for Swift Rod-001 (The Connector for Rod & Wall)
Features : - Finish : Satin Stainless Steel.
|
|
| SWIFT ROD - 001 |
|
| SWIFT ROD - 001 - Ø25
Floor guide
Features : - Material : Stainless Steel.
- Finish : Satin Stainless Steel.
- Size : 2000mm / 2500mm / 3000mm / 3600mm.
|
|
| SGSF - 007 A |
|
| SGSF - 007 A
Floor Guide(Oval)
Features : - For 10 mm to 12 mm glass.
- Material : Stainless Steel.
- Finish : Satin Stainless Steel.
|
|
| SGSF - 055 |
|
| SGSF - 055
Door Bumpher
Features : - Material : Stainless Steel.
- Finish : Satin Stainless Steel.
|
|
| SGSF - 131 |
|
| SGSF - 131
Synchro Wire
Features : - Material : Stainless Steel.
- Finish : Satin Stainless Steel.
- Size : 10,000mm.
|
|
| SGSF - 057 |
|
| SGSF - 057
Wall to Glass Connector
Features : - For 10 mm to 12 mm glass.
- Material : Stainless steel.
- Finish : Satin Stainless steel.
|
|
| SGSF - 010 |
|
| SGSF - 010
Fixing Fitting for Glass to Glass
Features : - For 10 mm to 12 mm glass.
- Material : Stainless steel.
- Finish : Satin Stainless steel.
|
|

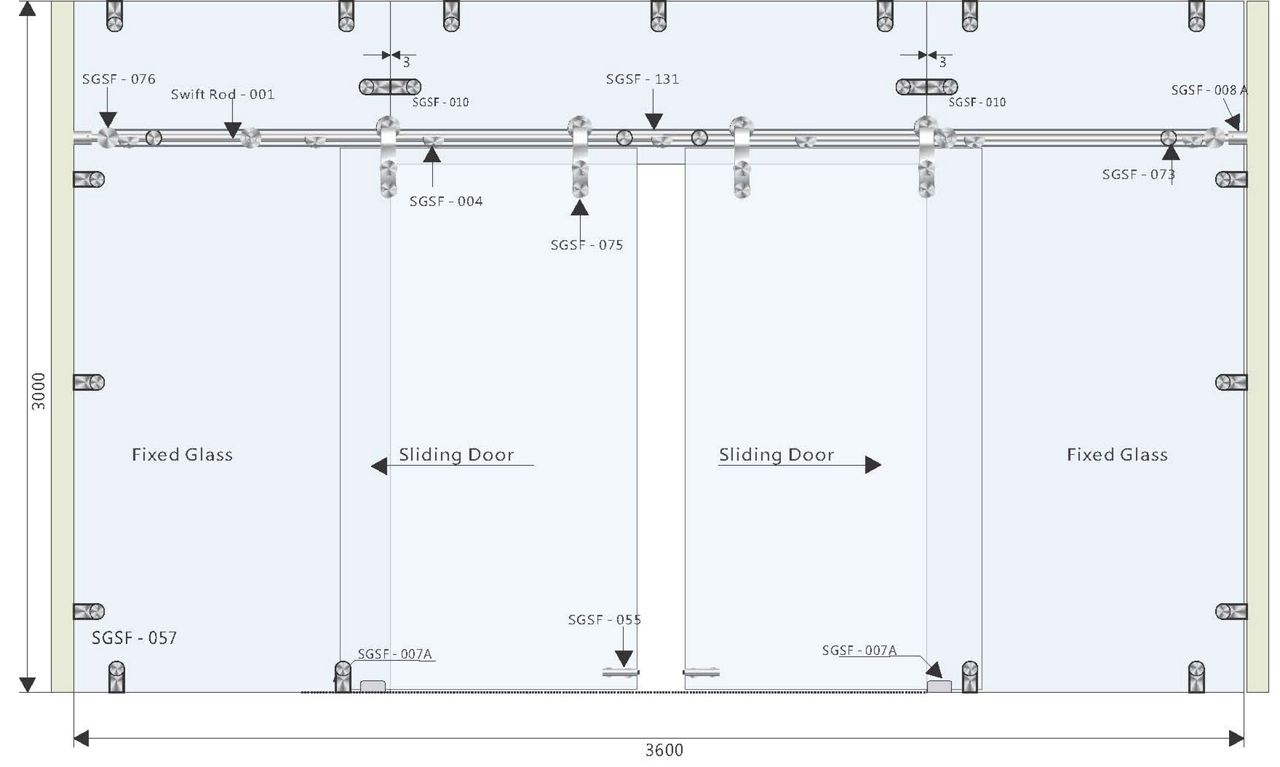

| Ordering Information for SGSF - 075 |
| Product Code | SGSF-075 | SGSF-004 | SGSF-076 | SGSF-073 | SGSF-008 A |
Quantity for 2 sync sliding with connector
| 4 Pcs | 8 Pcs | 2 Pcs | 4 Pcs | 2 Pcs |
Quantity for 2 sync sliding without connector
| 4 Pcs | 8 Pcs | 2 Pcs | 4 Pcs | 2 Pcs |
| Swift rod - 001 | SGSF-007 A | SGSF-055 | SGSF-131 | SGSF-057 | SGSF-010 |
| 1 Pcs (3000mm) | 2 Pcs | 2 Pcs | 1Pcs | 18 Pcs | 2 Pcs |
| 1 Pcs (3000mm) | 2 Pcs | 2 Pcs | 1 Pcs | - | - |
