ENOX Wooden Partition Fitting System ESLD - 1514 - 2/4/6

Wooden Partition Fitting

         Features:

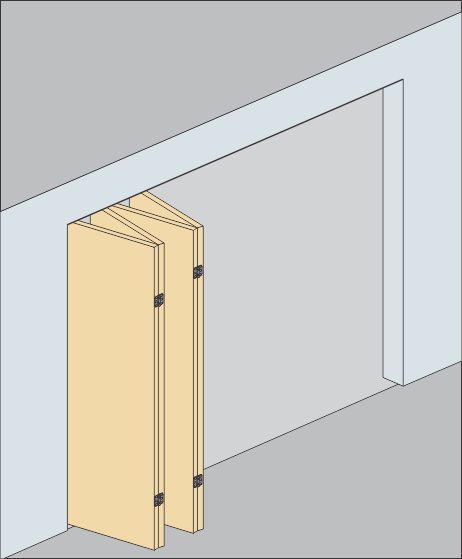

  • Wooden sliding fitting for small folding walls.
  • It permits the installation of 1, 2 or 3 pairs of doors.
  • Two-door constructions can be installed withoutbottom guide channels, four and six door constructionthese are require bottom guide channel.

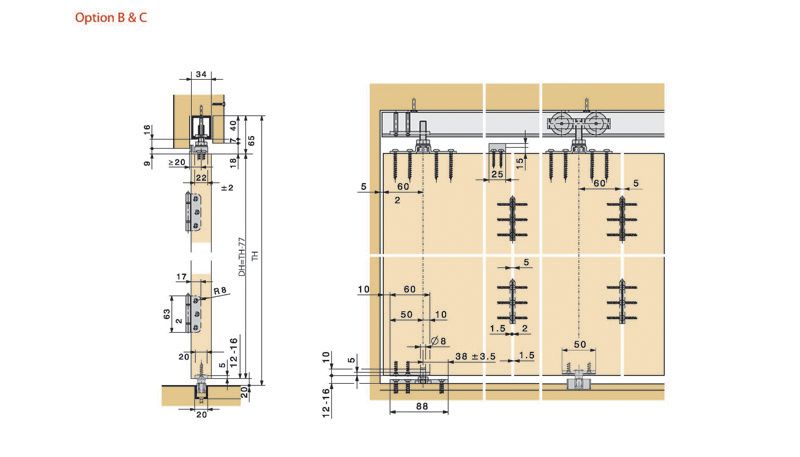

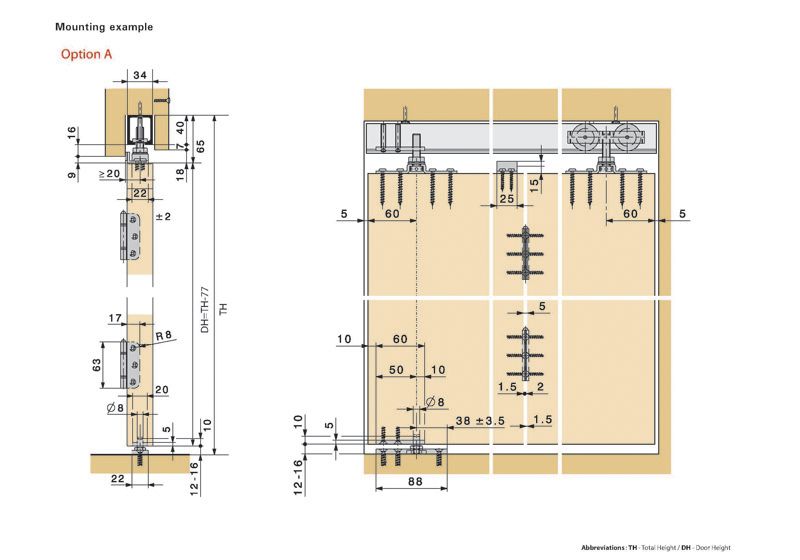

  • Maximum door weight - option A For 2 sliding doors : 40kgs/panel. option B For 4 sliding doors : 30kgs/panel. option C For 6 sliding doors : 30kgs/panel.

ESLD - 1514 - 2
HAWA Bifold 30

ESLD - 1514 - 4
HAWA Bifold 30

ESLD - 1514 - 6
HAWA Bifold 30



ESC - 1501 - 3000 MM / 4000 MM
Aluminium single top track, pre-drilled
Features :
Finish: Aluminium Anodized.
Size: 3000 / 4000 mm.



ESC - 1514 A - 6000 MM
Aluminium Bottom guide channel, pre-drilled
Features :
Finish: Aluminium Anodized.
Size: 6000 mm.
