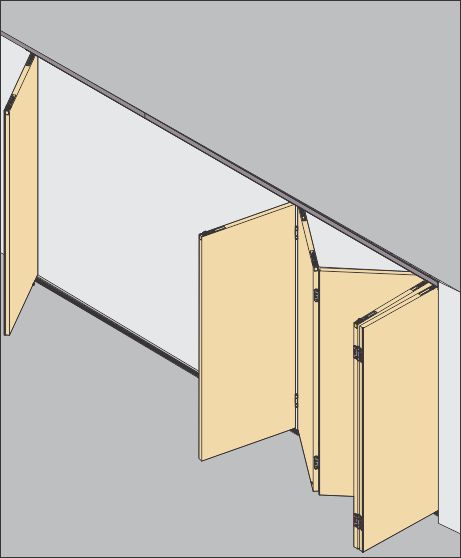

ENOX Wooden Partition Fitting System ESLD - 1701

HAWA Variofold 80/H

         Features:

  • Wooden sliding fitting for large folding walls.
  • Installations are simple to plan and quick toassemble.
  • Left and right-hand, inwards or outwardsopening installations all use the same components.
  • A communicating pivot door can be added tothe panel stack or the opposing end.
  • Equal-width panels for simple planning.
  • Vertical adjustment : ±3mm.
  • Minimum door width : 500mm.
  • Maximum door weight : 80kgs/Panel.

ESLD - 1701 P
Basic set with pivot bearing andbottom guide channel.

ESLD - 1701 P-W
Basic set with pivot bearing andwithout bottom guide channel.

ESLD - 1701 A
Additional set with bottom guide channel.

ESLD - 1701 B
Pivot door set to folded stack(without trolley and top pivot bearing).

ESLD - 1701 C
Pivot door set for installation withbottom guide channel.

ESLD - 1701 C-W
Pivot door set for installationwithout bottom guide channel.

ESC - 1701 - 6000 MM
Aluminium anodized single top track, pre-drilled.
Features :
Finish: Aluminium Anodized.
Size: 6000 mm.



ESC - 1701 B - 6000 MM
Aluminium anodized bottom guide channel non-drilled.
Features :
Finish: Aluminium Anodized.
Size: 6000 mm.

ESSH - 4303
Ball Bearing Hinge
Features :
Material: Stainless Steel 304.
Size: 4 x 3 x 3mm.

ESC - 1701 - A - 10 MTR
Rubber Hollow seal
Features :
Finish: Black.
Size: 10000mm.

ESLD - 1701 D
Deadbolt lock, glr. steel deadbolt 13mm.

ESLD - 1701 E
Thumbturn for door thickness-35 to 40mm.
Features :
Finish: Chrome.

ESLD - 1701 G
Key for dead bolt lock for ESLD - 1701-D.

ESLD - 1701 F
Floor mounted with oblong hole and spring cover.
Features :
Finish: Chrome.

ESLD - 1701 I
Rosette for floor - mounted sleeve for ESLD - 1701-F.

ESLD - 1701 J
Bar bolt lock for Locking at handle height,square socket, backset 42.5mm.

ESLD - 1701 L
slip-fit rose, brass dull nickel

ESLD - 1701 M
Strike plate,chrome- plated steel
