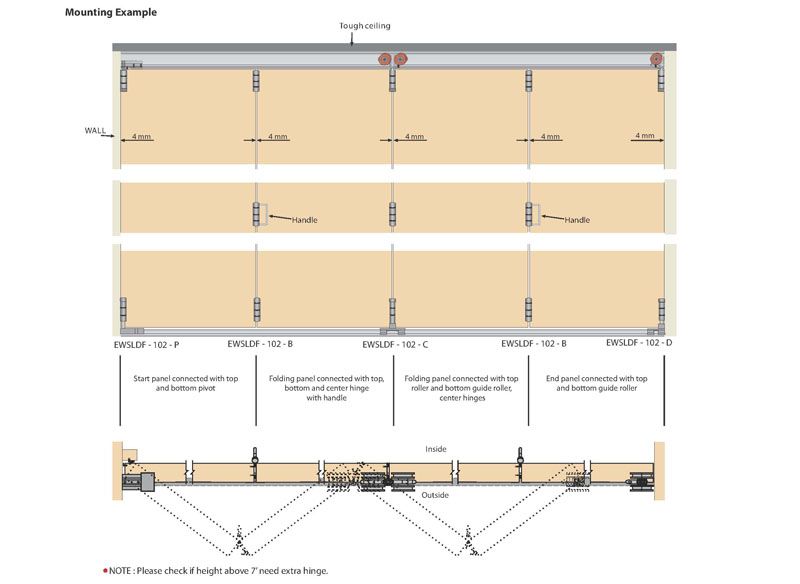

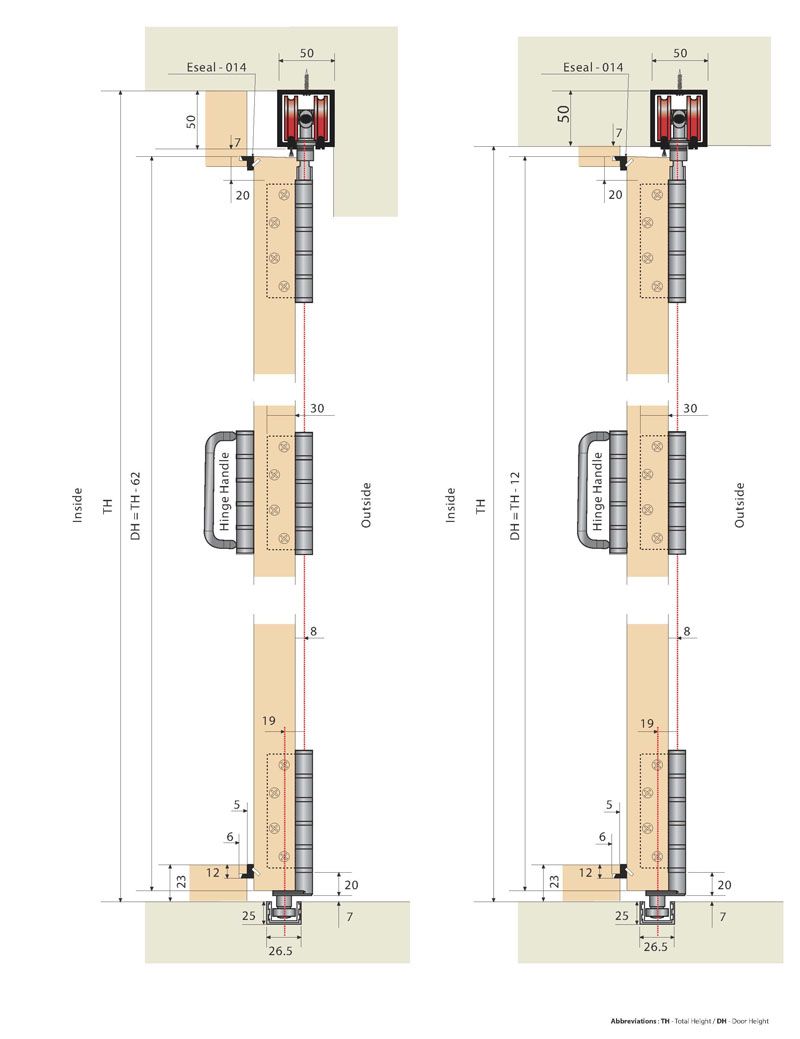

ENOX Wooden Partition Fitting System EWSLDF - 102 P

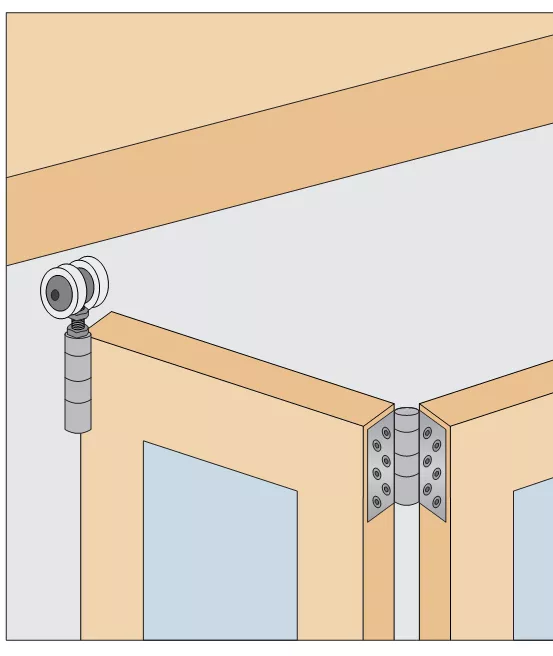

Wooden Sliding Folding System with pivot mounting

         Features:

  • Advanced folding mechanism for up to 6 woodenpanels.
  • Wooden folding system is designed for bothinterior and exterior applications.
  • Panels are connected using a hinge system.
  • Nylon wheels with integrated bearing for quiet andeasy running.
  • Maximum door weight : 75kgs/Panel.


ESC - 042 (12) / (16)
Top track for wooden sliding folding system - 102P Features :
● Finish : Aluminium Anodized.
● Size : 3600mm / 4800mm.


ESC - 043 (12) / (16)
Bottom track for wooden sliding folding system - 102 P
Features :
PVC track for quiet running.
Size: 3600mm/4800mm.


ESEAL - 013
Top track seal for ESC - 042
Features :
Size:  1000mm.



ESEAL - 014
Frame seal for wooden sliding folding
Features :
Finish: Brown.
Size: 1000 mm.



ESEAL - 015
Door seal for wooden sliding folding
Features :
Finish: Brown.
Size: 1000 mm.
