ENOX Wooden Sliding Folding Fitting System ESLD - 1520 - 1

HAWA Normafitt 70

         Features:

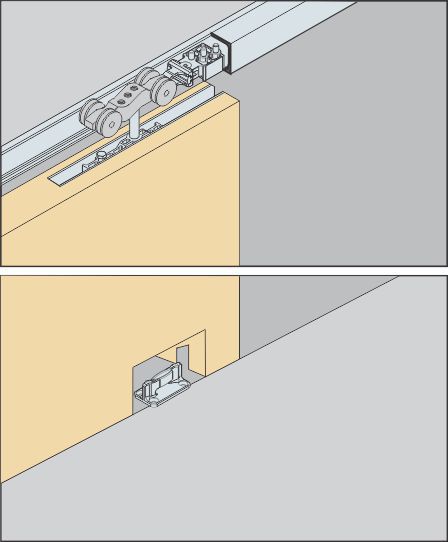

  • Top-running sliding system, imperviousto dust and durt.
  • Wide doors are kept firmly on track bytwo spring loaded floor guides.
  • Clip or stick-on 2.5 mm high floor guide track.
  • Door can slide across the entire opening width.
  • Centre stop to hold sliding door in position.
  • Maximum door weight : 70 kgs/Panel.


ESLD - 1520 -1
HAWA Normafitt 70


ESC - 1510 - 2500 MM/3500MM
Aluminium anodized single top track, pre-drilled
Features :
Finish: Aluminium Anodized.



ESC - 1510 - B - 3500 MM
Aluminium anodized double top track, pre-drilled
Features :
Finish: Aluminium Anodized.
Size:3500 mm



ESC - 1501 - A
Guide profile plastic
Features :
Finish: Black.
Size:1300 mm



ESC - 1510 - D - 3500 MM
Dual bottom guidetrack
Features :
Finish: Alu Anodized.
Size:3500 mm



ESC - 1510 - C
Single bottom guidetrack
Features :
Finish: Alu Anodized.
Size:3500 mm



ESLD - 1510 - D
Spring bottom guidefor wooden slidingdoor.



ESLD - 1510 - C
Fixing part for bottomguide track
