EGSLDF-083

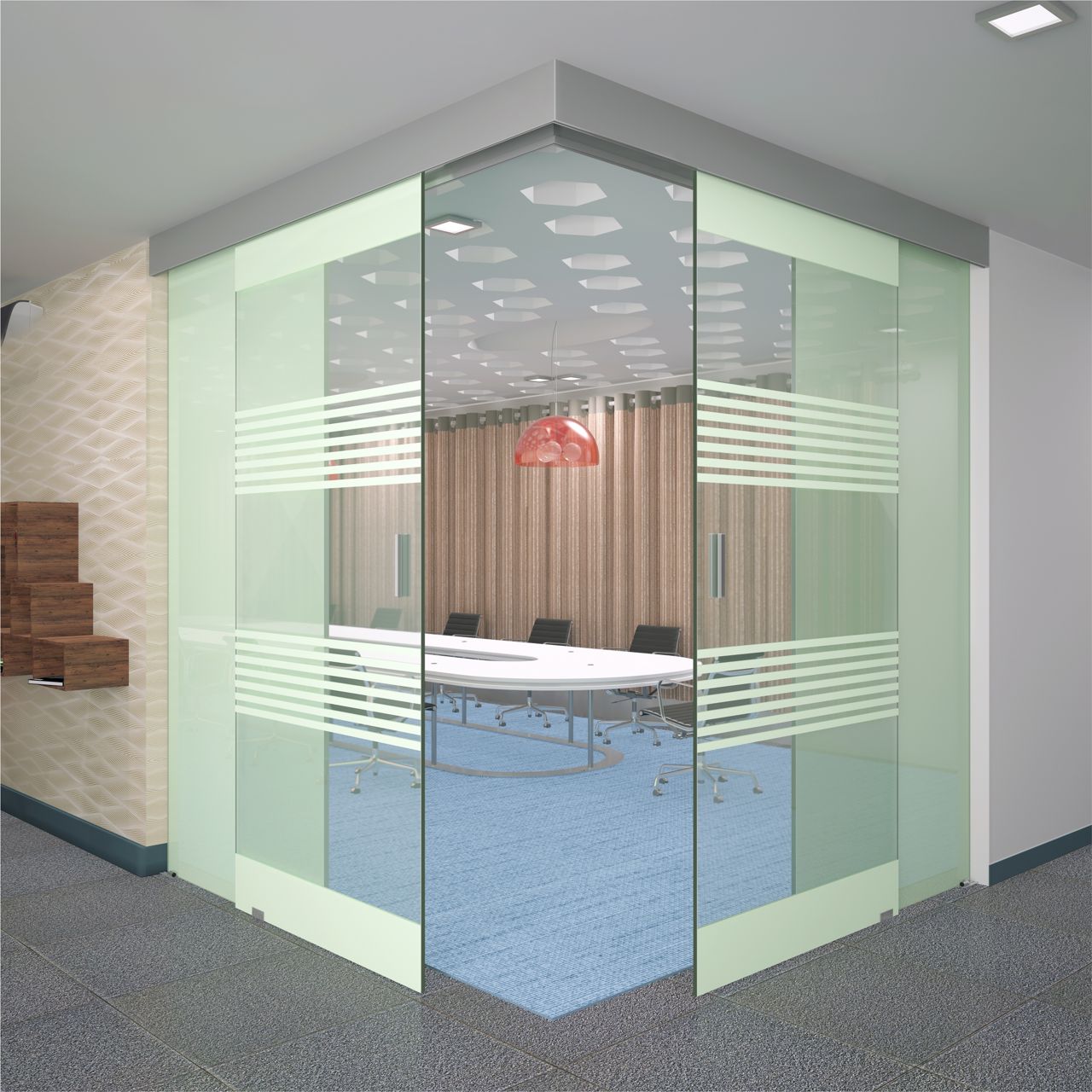

Eromatic synchro has been designed to create spaces by two sliding glass panels facing each other that open
synchronously along fixed glass panels.

Features :

● Use for partitioning offices, conference rooms, bedrooms, lounges, etc.
● Eromatic synchro that opens from 90º (corner) up to 180º for openings up to 1.7 to 2.3 metres.
● Minimum gap between fixed and sliding panels for an aesthetic application.
● Clear passage with no bottom profiles.
● Aluminium anodized profile.
● Single profile to combine fixed and sliding panels for an easy installation.
● Clip-fixed gallery for a quick installation.
● Sliding Glass 10mm Maximum Height 2700mm.
● Sliding Glass 12mm Maximum Height 2500mm.
● Ball bearing well system for smooth opening.
● Mounted and tensed transmission system for a quick assembly.
● Wall and ceiling mounted.
