EGSLDF - 102/103

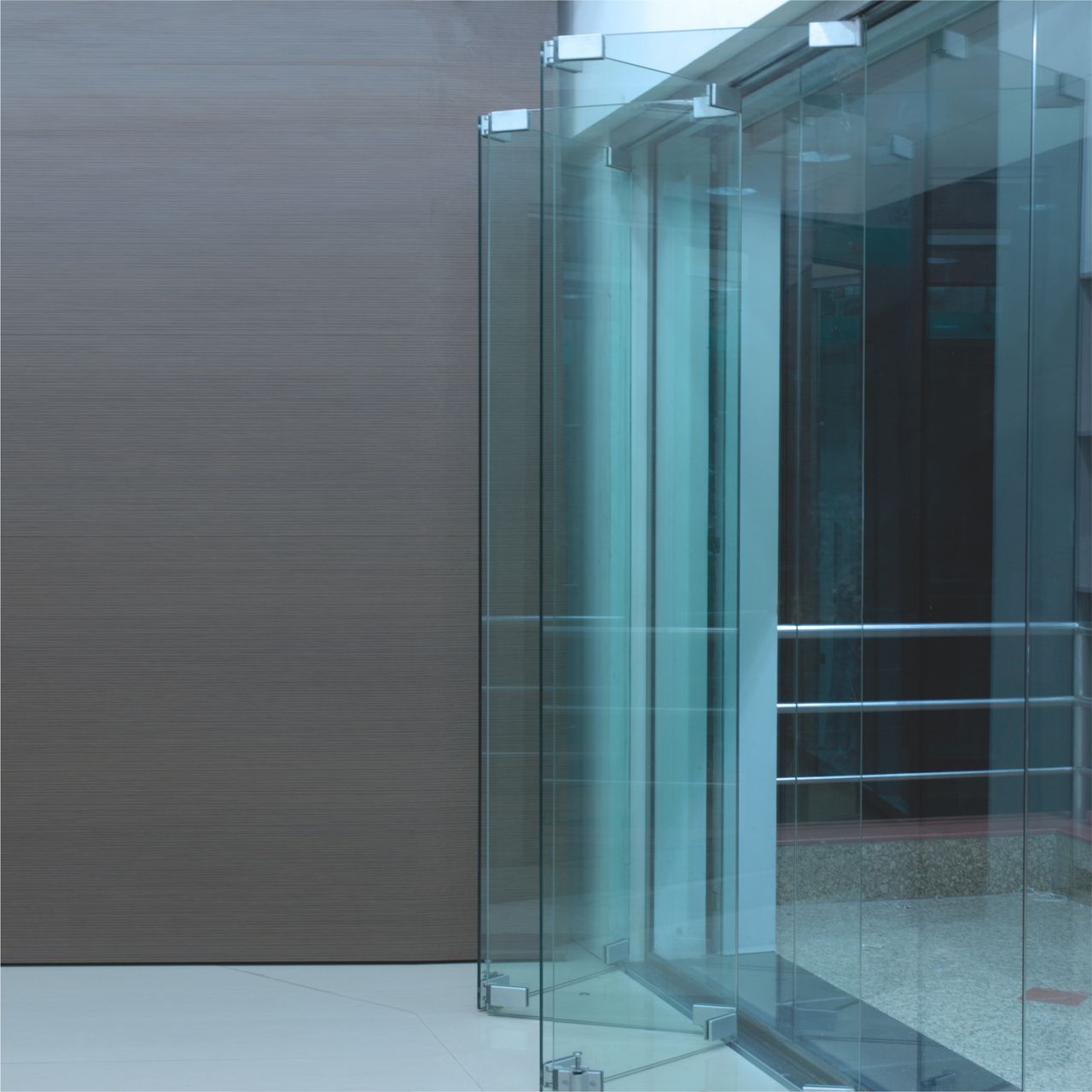

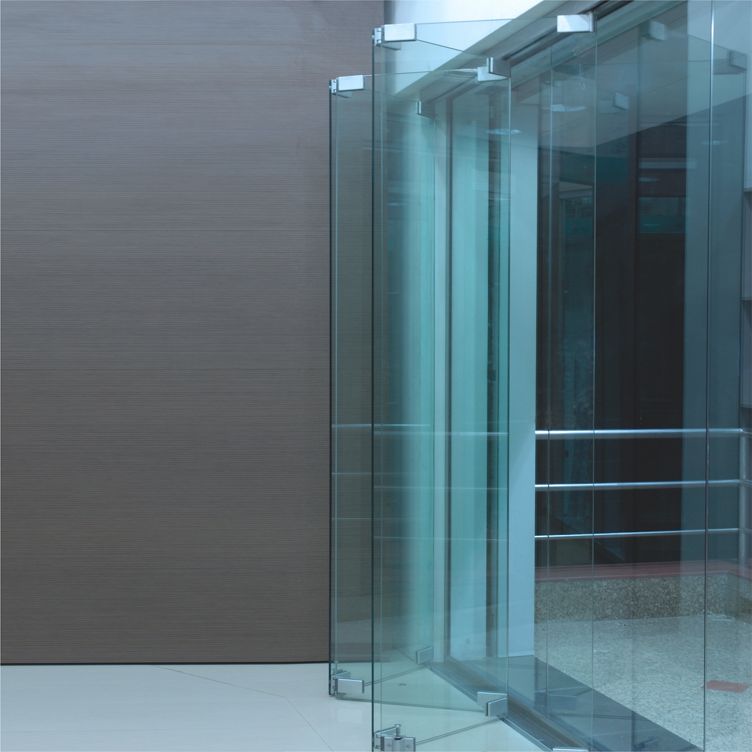

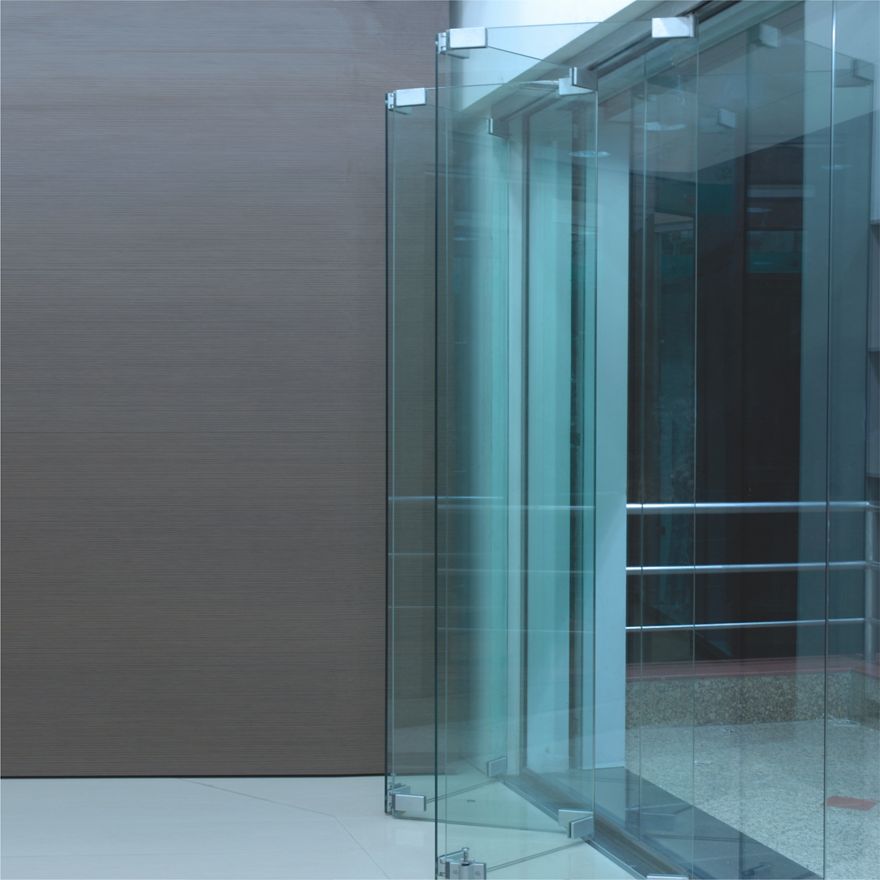

Glass Side Sliding Folding System

Glass folding system for all-frameless folding panel for even or odd number of panels. All mechanisms are fully integrated into highly attractive end product. This system is designed for both interior and exterior application. Nylon wheels with integrated bearing for quiet easy running. This system can be quickly and easily adapted
to new situations. It’s ideal for use in office interiors, exterior, homes, etc.

Features :
Advanced glass side sliding folding system up to 6+1 frameless panels with bottom guide.
Universal design for DIN left & DIN right application.
Smooth and silent operation.
Fully integrated locking system.
All panels are connected using hinges integrated in profiles.

Glass Side Sliding Folding System 103
• Maximum door weight : 75 kgs.
• Maximum door width : 800mm.
• Minimum door width : 500mm.
• Maximum door height : 2700mm.
• Maximum glass thickness : 10 - 12mm.

Glass Side Sliding Folding System 102
• Maximum door weight : 75 kgs.
• Maximum door width : 800mm.
• Minimum door width : 500mm.
• Maximum door height : 2100mm.
• Maximum glass thickness : 10 - 12mm.
