EGSLDF-202

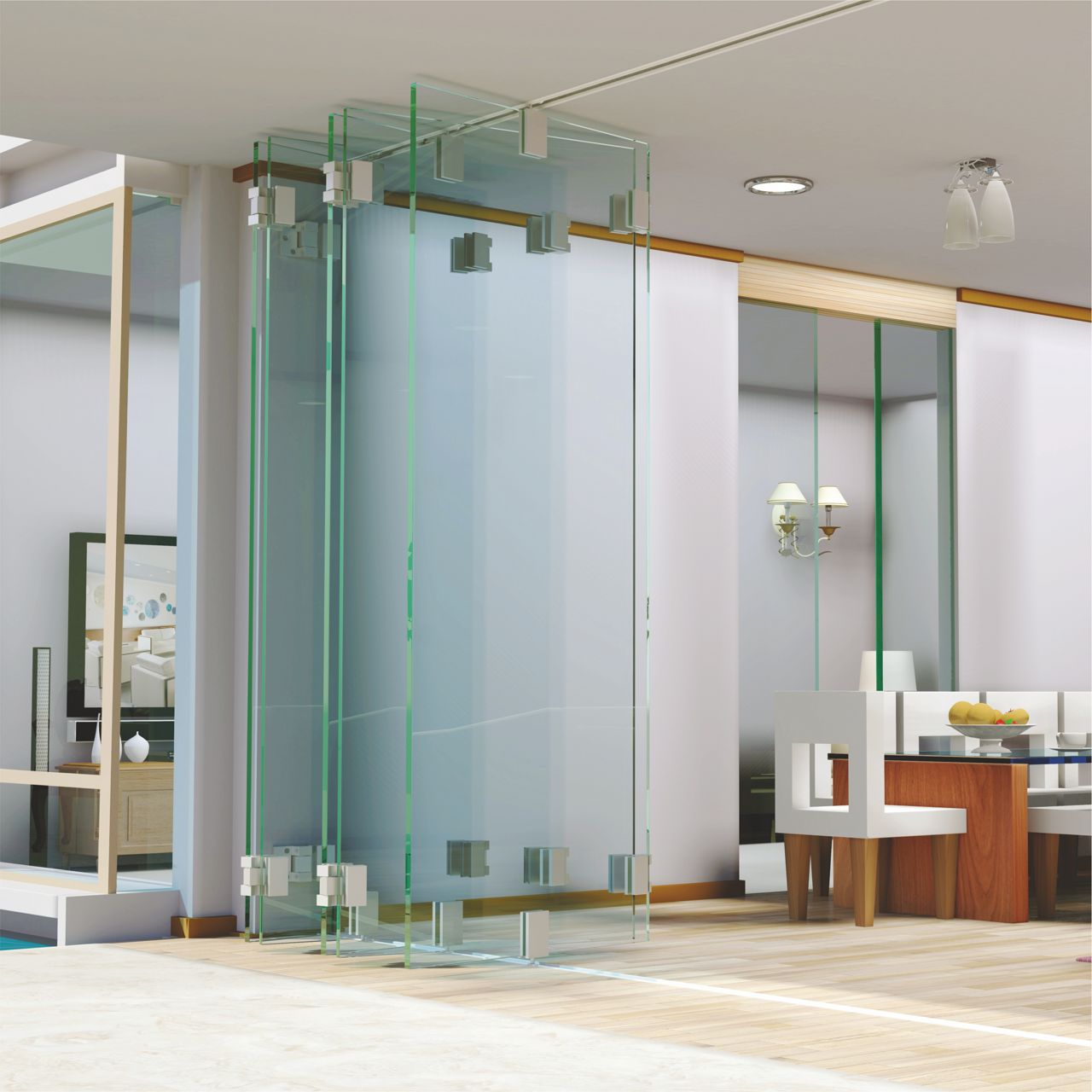

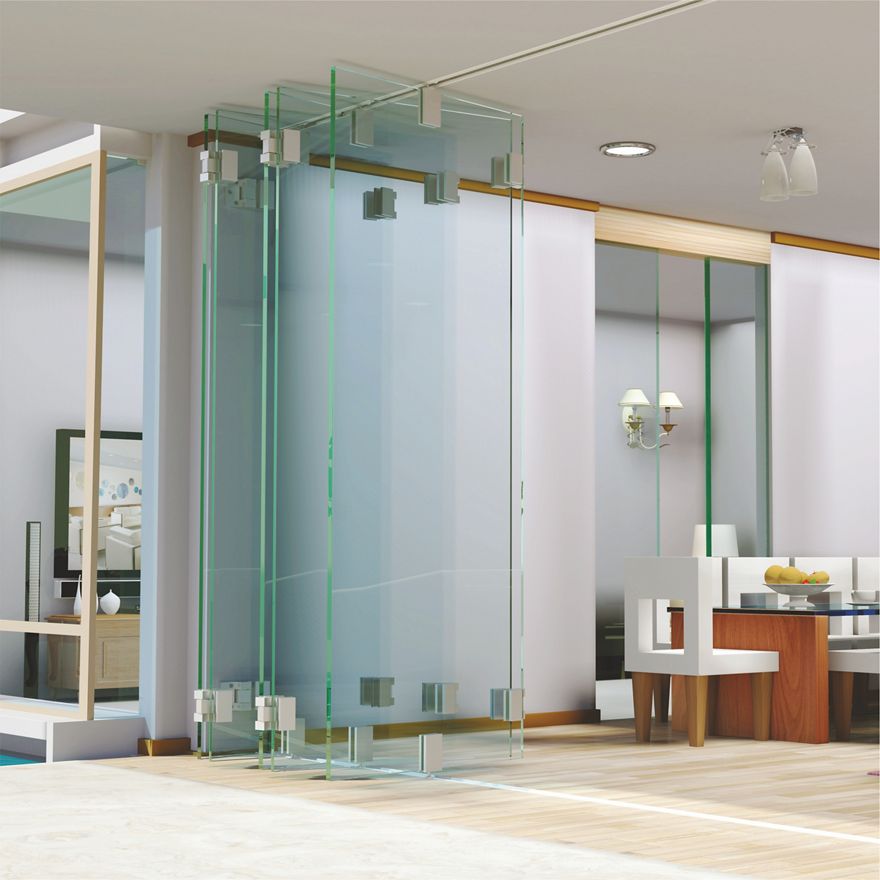

Glass Center Sliding Folding System

Glass Center folding system for all-frameless glass panels with professional design concept. All mechanisms are fully integrated into highly attractive end product.
This system is designed for both interior and exterior application. Nylon wheels with integrated bearing for quiet easy running. This system can be quickly and easily adapted
to new situations. It’s ideal for use in office interiors, exterior, homes, etc.

Features :
• Advanced glass center sliding folding system up to 6+1 frameless panels without bottom track/guide.
• Universal design for DIN left & DIN right application.
• Smooth and silent operation.
• Fully integrated locking system.
• All panels are connected using hinges integrated in profile .
• Maximum door weight : 75 kgs.
• Maximum door width : 800mm.
• Minimum door width : 500mm.
• Maximum door height : 2700mm.
• Maximum glass thickness : 10 - 12mm.
