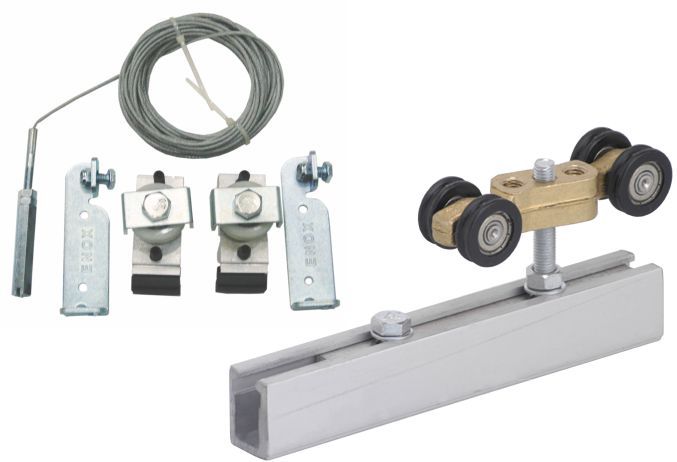

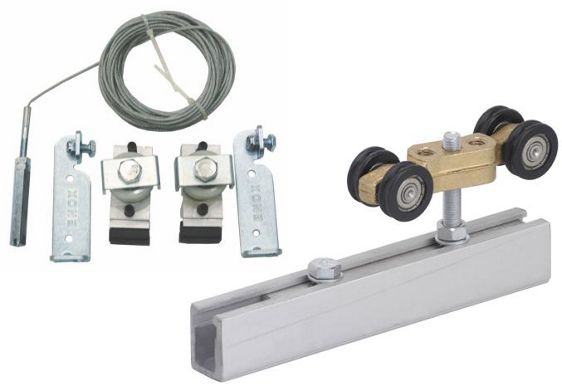

Wooden Sliding Fitting System ESLD - 005 H

Wooden Sliding Fitting - Synchro

         Features:

  • Running track for ceiling mounting.
  • Installation height 52 mm.
  • (Update) nylon wheels with integrated bearings.
  • Easy to assemble.
  • Trouble free operation.
  • For 2 wooden synchronized doors.
  • Maximum door weight : 90 kgs/Panel.





ESLD - 005 H
Maximum door weight - 90 kgs/Panel.


ESC - 005(12)
ESC - 005 (16)
Aluminium anodized single top track non-drilled
Features :
Finish : Aluminium Anodized.
Size :  3600mm, 4800mm.
