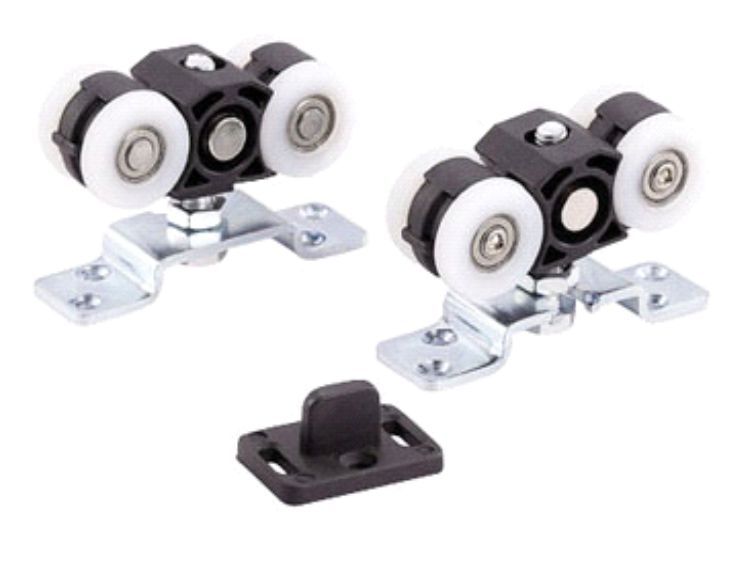

Wooden Sliding Fitting System ESLD - 078

Wooden Sliding Fitting

         Features:

  • Running track for ceiling or wall mounting.
  • Installation height 58 mm.
  • (Update) nylon wheels with integrated bearings.
  • Easy to assemble.
  • Trouble free operation.
  • For 1 wooden door.
  • Maximum door weight : 100 kgs/Panel.







ESLD - 078
Maximum door weight - 100 kgs/Panel.


SGSF - 029
Aluminium anodized single top track non-drilled
Features :
Finish : Aluminium Anodized.
Size :  3600mm.


SGSF - 023
Stopper for ESLD - 078
Features :
Material : PVC.
Finish :  White.


SGSF - 024
Bracket for SGSF - 029 open end
Features :
Material : PVC.
Finish :  Black.


SGSF - 025
'L' clamp for fixing sliding track into wall
Features :
Material: Stainless Steel.
Finish: Satin  Stainless Steel.


SGSF - 132
Sliding Track SGSF - 029 with SS Cover Profile
Features :
Material of Cover Profile: Stainless Steel.
Finish of Cover Profile:  Satin Stainless Steel.
Size : 3600mm.



􀁎L􀁏 clamp for fixing sliding track into wall
